Early UW Shallow Convection results (May)

Back to M2 results summary

Project call for the porting of the UW Shallow Convection scheme (UW). The work was concluded in May with validation on performance backends and early pre-optimization benchmarks.

Validation

Hardware & software stack

Validation using the Discover hardware

Validation was done on a GEOS-FP run at C180-L137 (~51 km horizontal resolution) [<--is this correct?] over 7 days of simulated time. Only the UW Shallow Convection scheme was swapped from Fortran to NDSL, the rest of the model code is running the original Fortran.

Below are the distribution of differences between the reference Fortran and the CPU performance backend after 7 days of simulation.

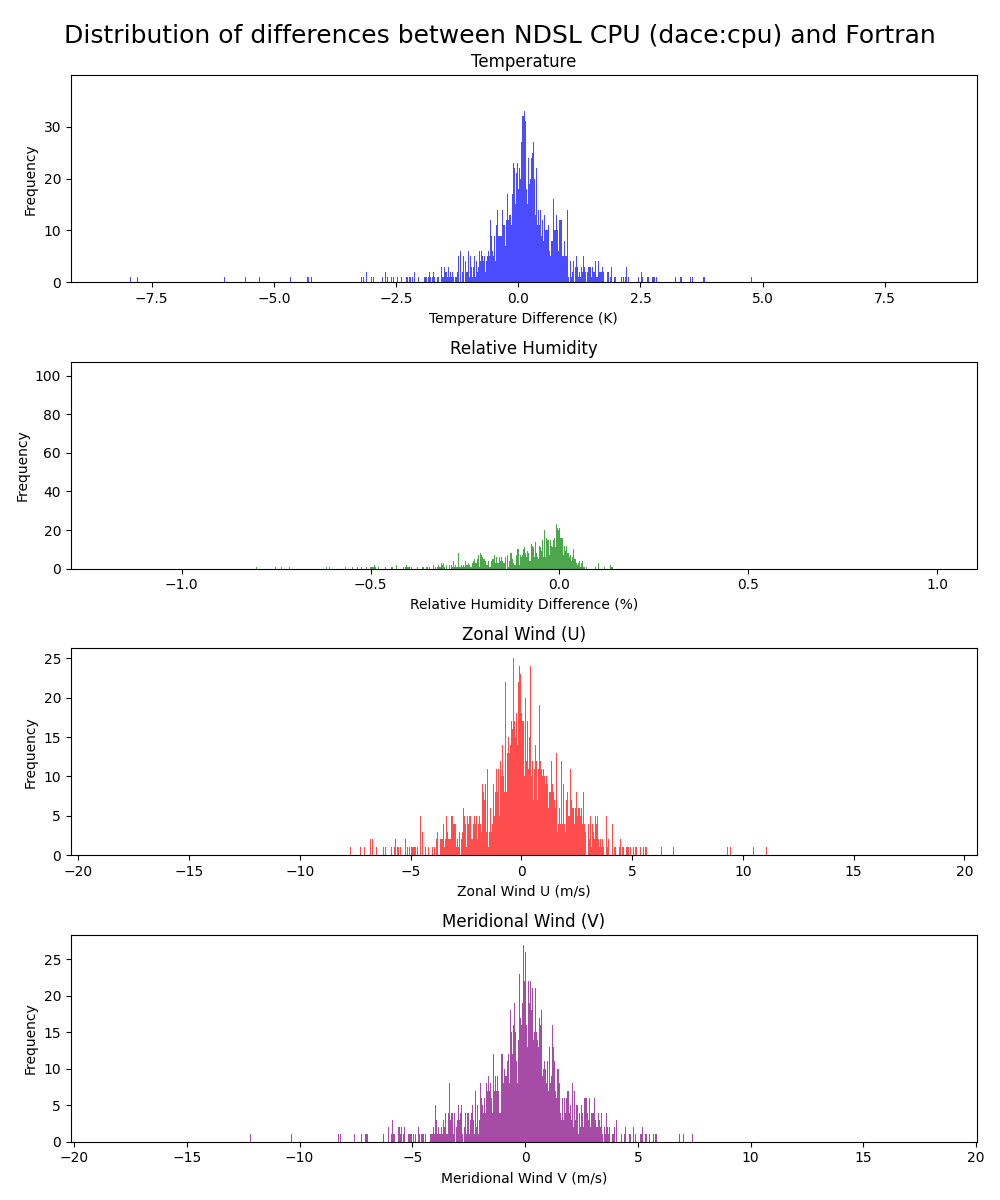

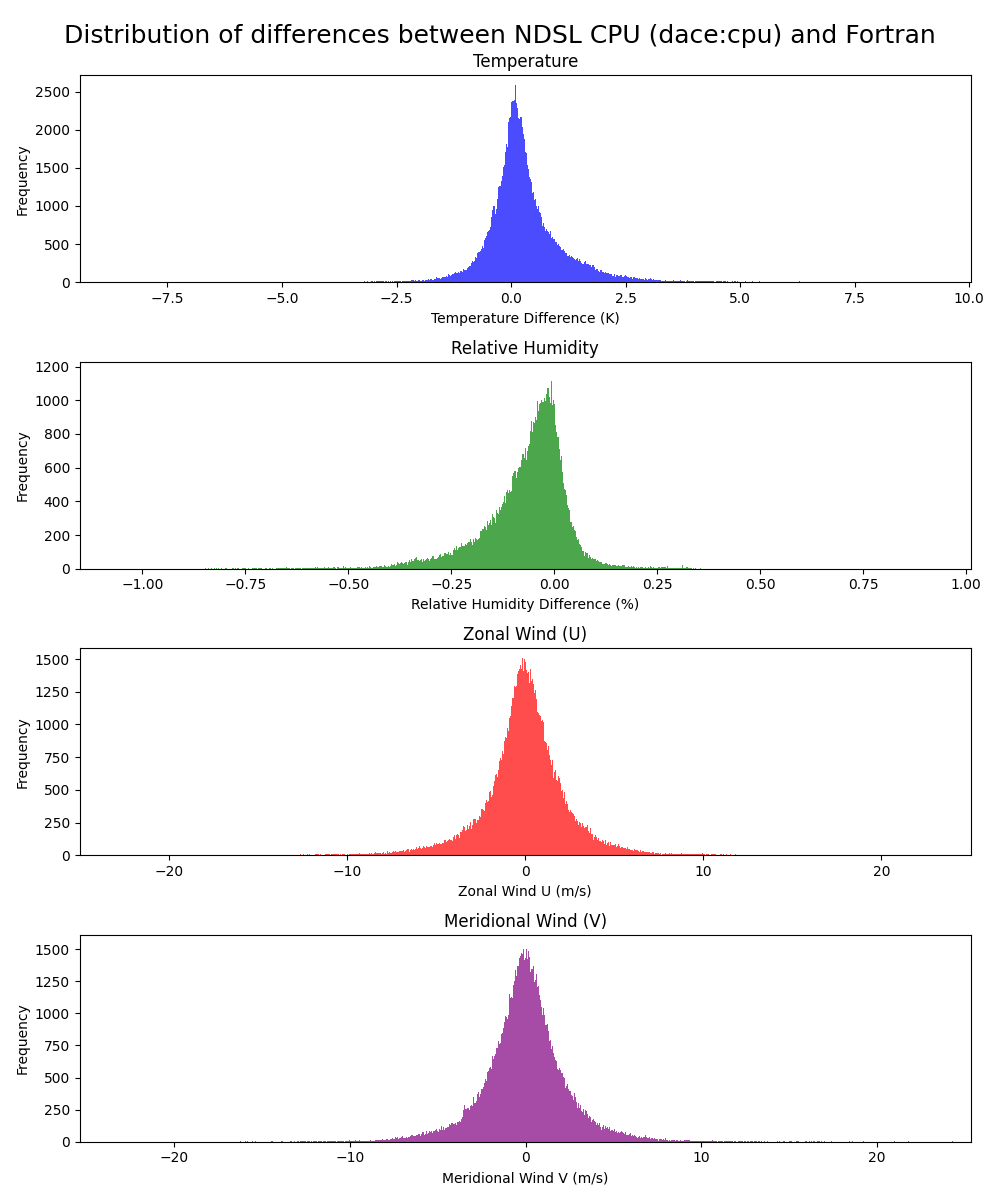

We start with an histogram showing the distribution of differences between the reference Fortran. While a good portion of the differences are centered around zero, there are still a larger number of non-zero outliers. especially for relative humidity and wind. These outliers are most likely due to numerical differences that still exist between the Fortran and NDSL in the UW shallow convection scheme. Alhough these errors are relatively small, they can become quite large over a 7 day simulation:

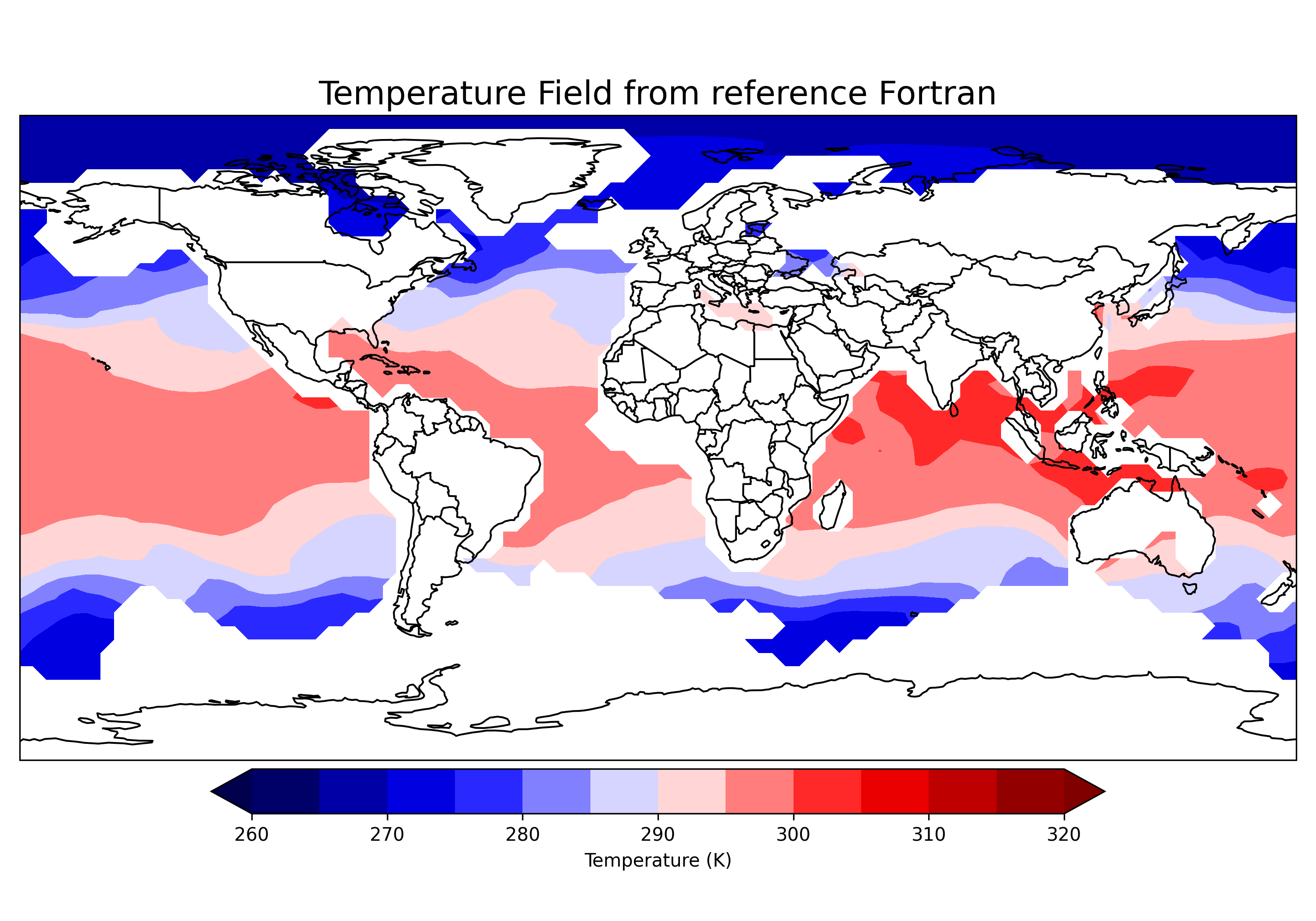

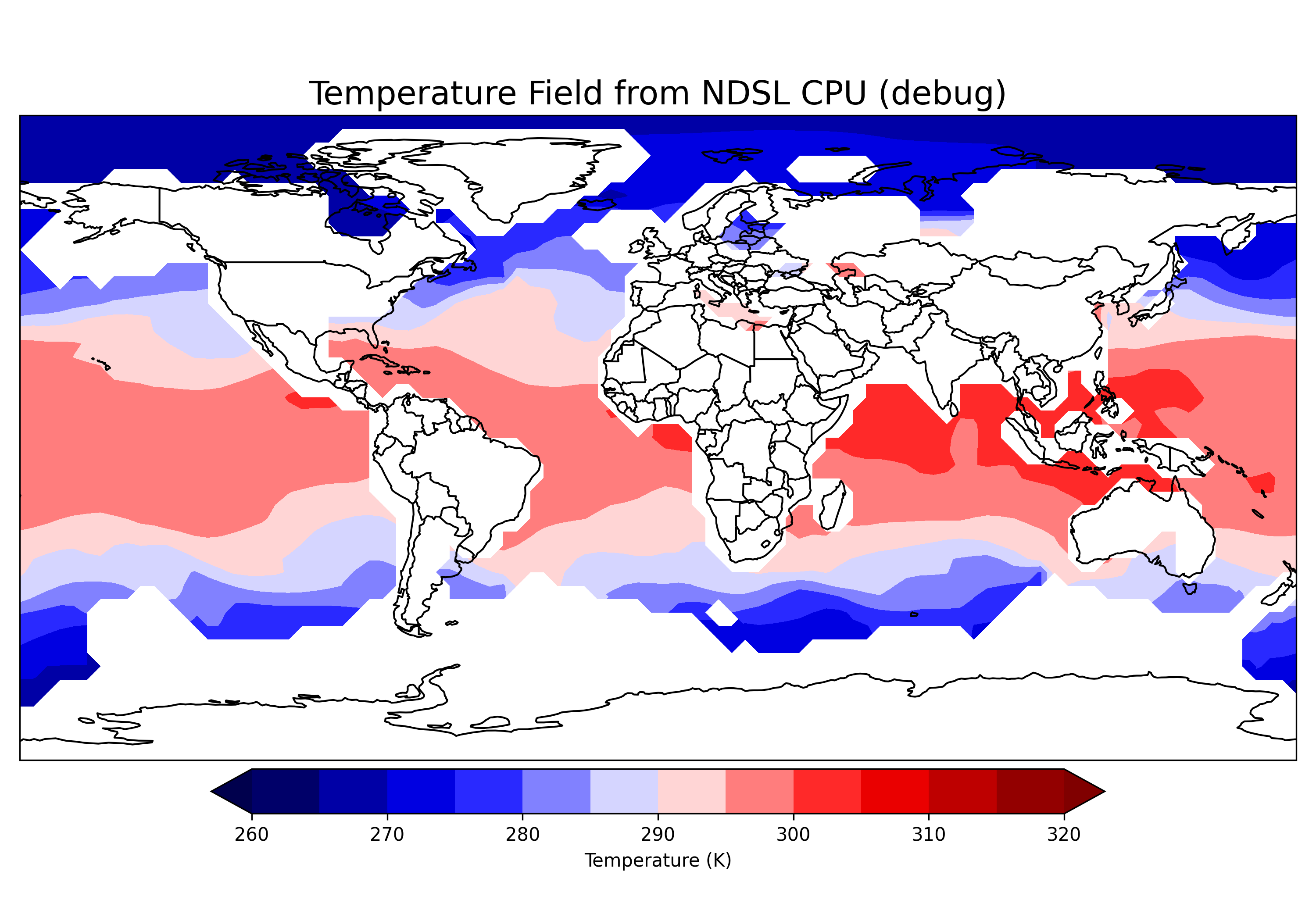

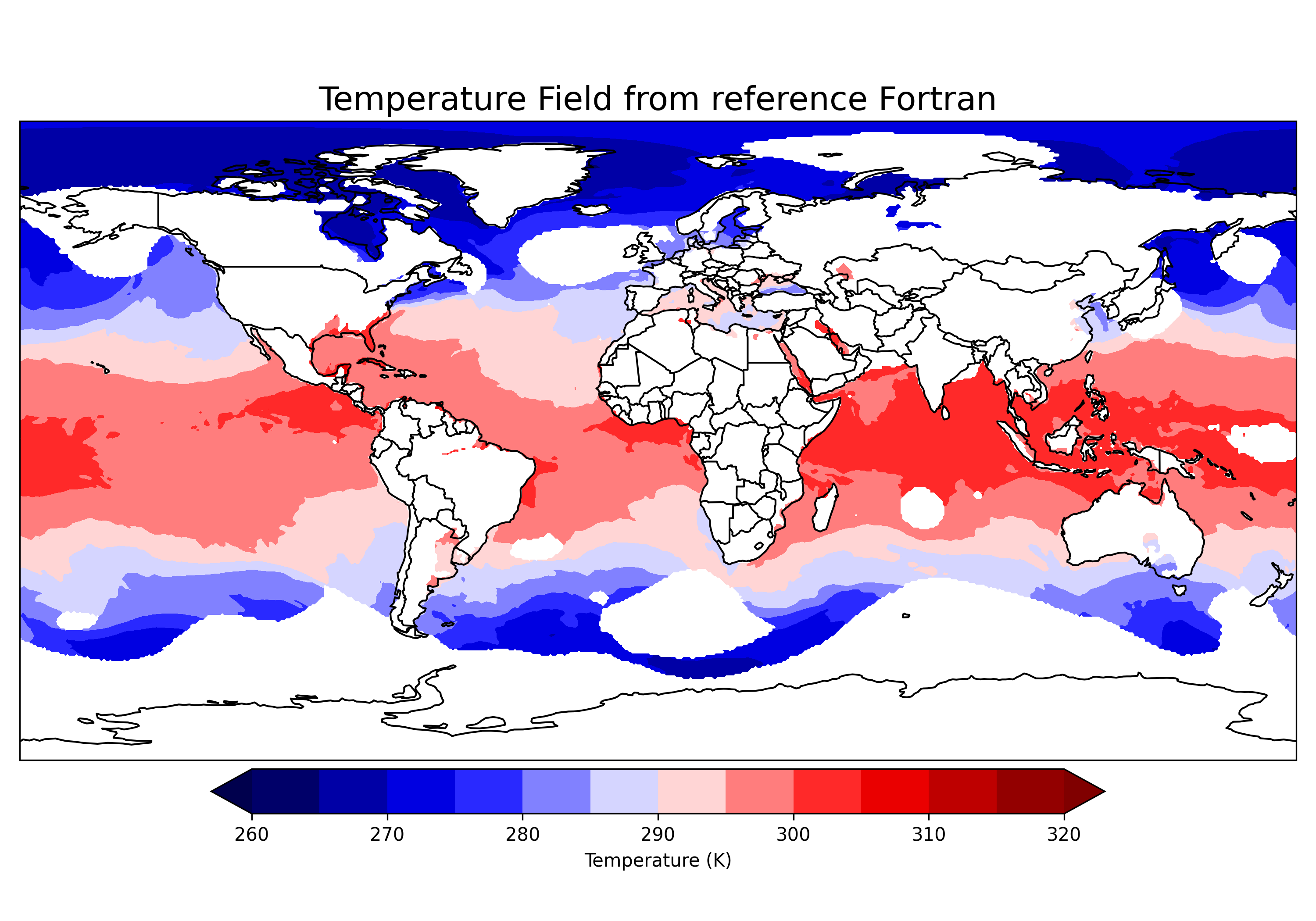

Looking at temperature in particular to explore the outliers, we show below the reference Fortran and the NDSL performance backend:

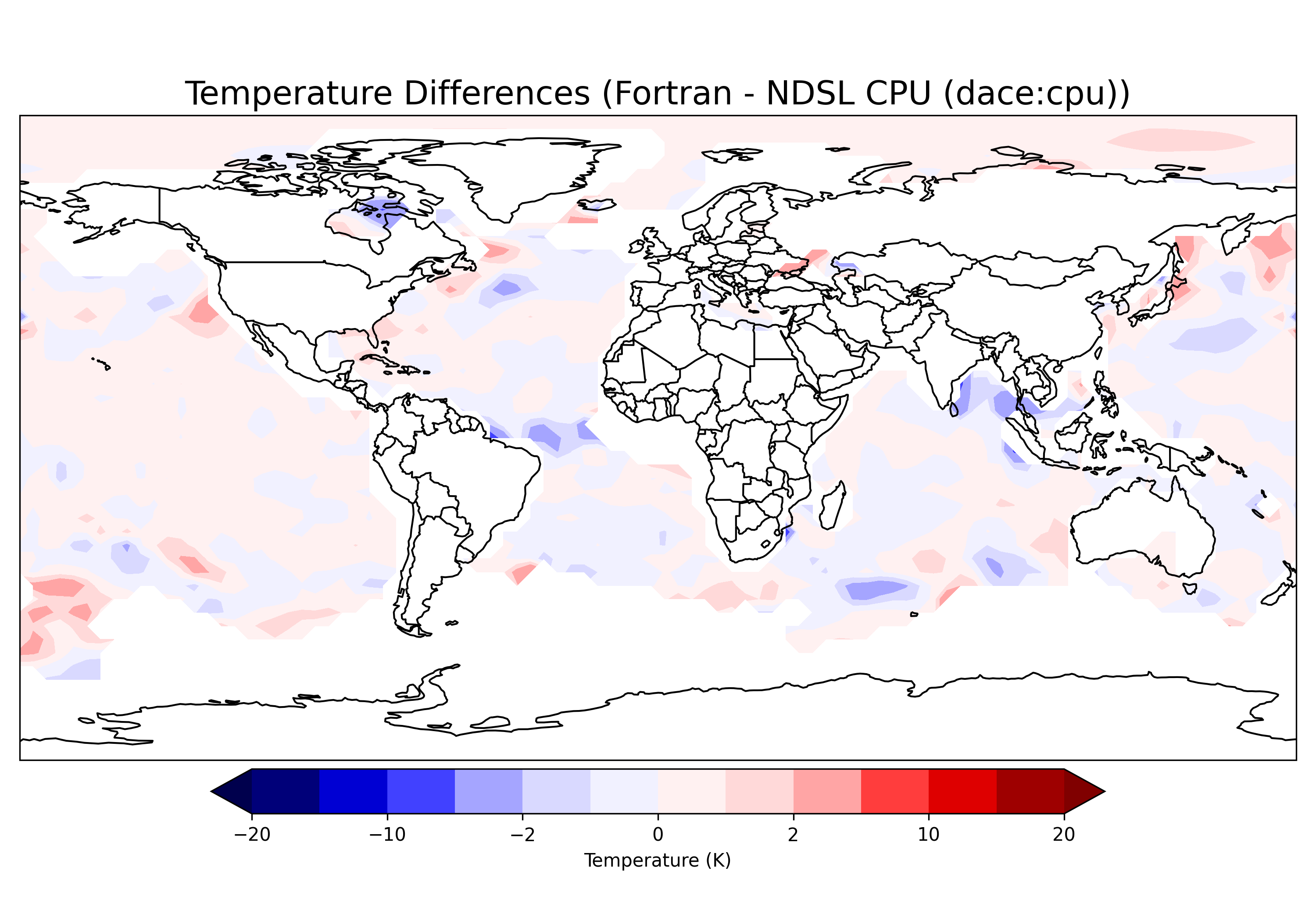

The temperature patterns look very similar between the Fortran and Python. However some differences do exist at places where the temperature gradient is slightly misplaced in the NDSL. Below we graph the difference between Fortran and NDSL to show generally good spatial agreement of the runs, however some large erros do exist at several places. Again, these errors are most likely due to the numerical differences that still exists between the Fortan and the NDSL in the UW shallow convection scheme:

Benchmark

Benchmark is done by measuring CPU time (post sync for GPU) at the Fortran level (overhead of going to GPU from CPU is included in the number). This mirrors the real life application of the technology running an "hybrid" GEOS.

Times are given in seconds. Positive speed up means NDSL is faster, negative means original Fortran is faster.

** Still need to do UW runs on C180**

Resolution	Layout	Fortran	NDSL GPU (dace:gpu)	NDSL CPU (gt:cpu_kfirst)	Speed up CPU/GPU	Speed up CPU/CPU
C180 (~51km)	4x4	0.XXs	0.XXs	0.XXs	X.XXx	-X.XXx

Perturbed initial condition Fortran runs

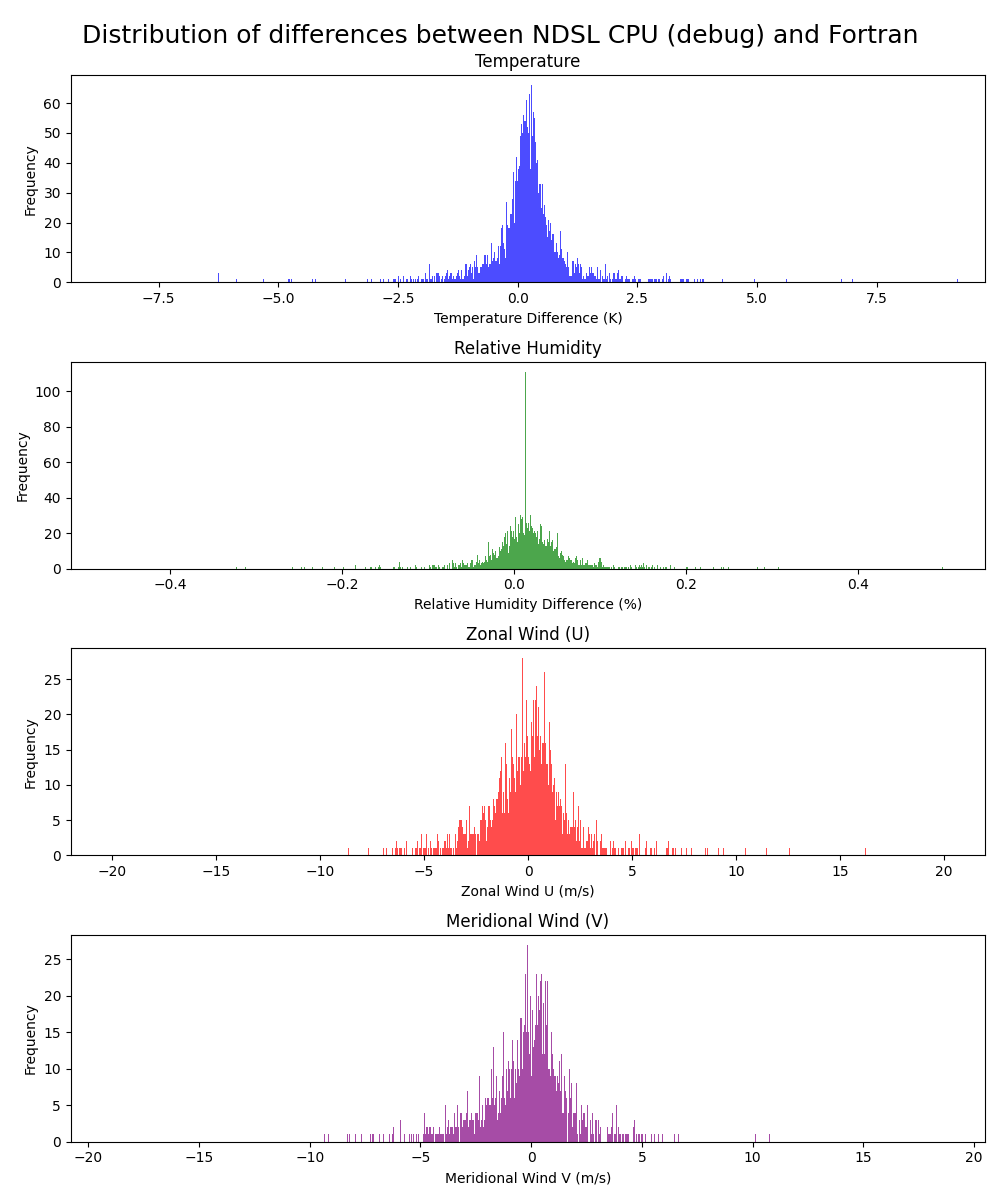

To demonstrate how small errors can grow into larger errors throughout a 7-day Fortran simulation, we experimented by applying small perturbations to several UW inputs (e.g., T, Q, U, V) at initialization. We then ran the model for 7 days. The differences (Fortran - Fortran Perturbed) after the 7 day run are shown below:

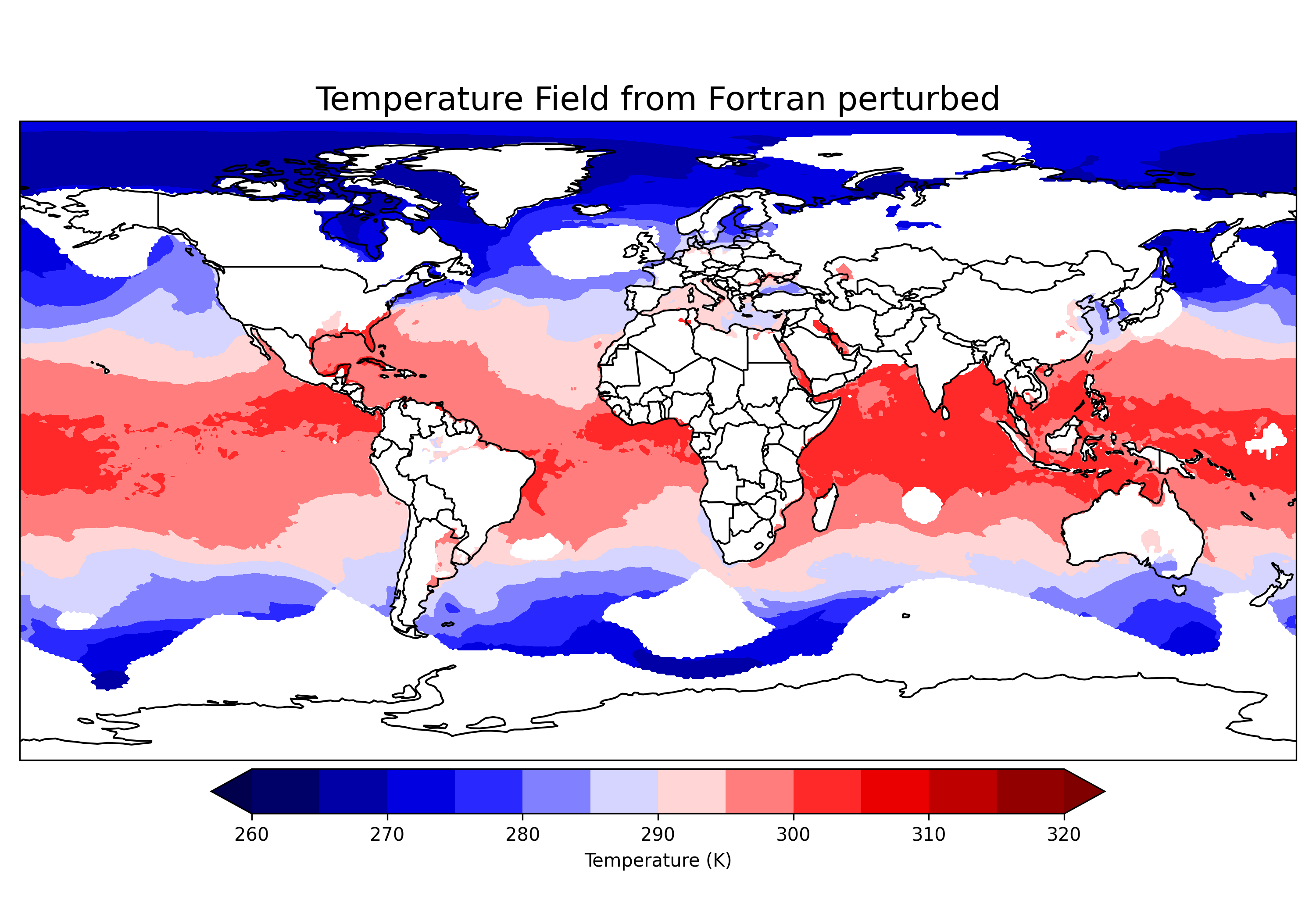

Looking at temperature again, here are temperature fields for the Fortran and the perturbed Fortran runs:

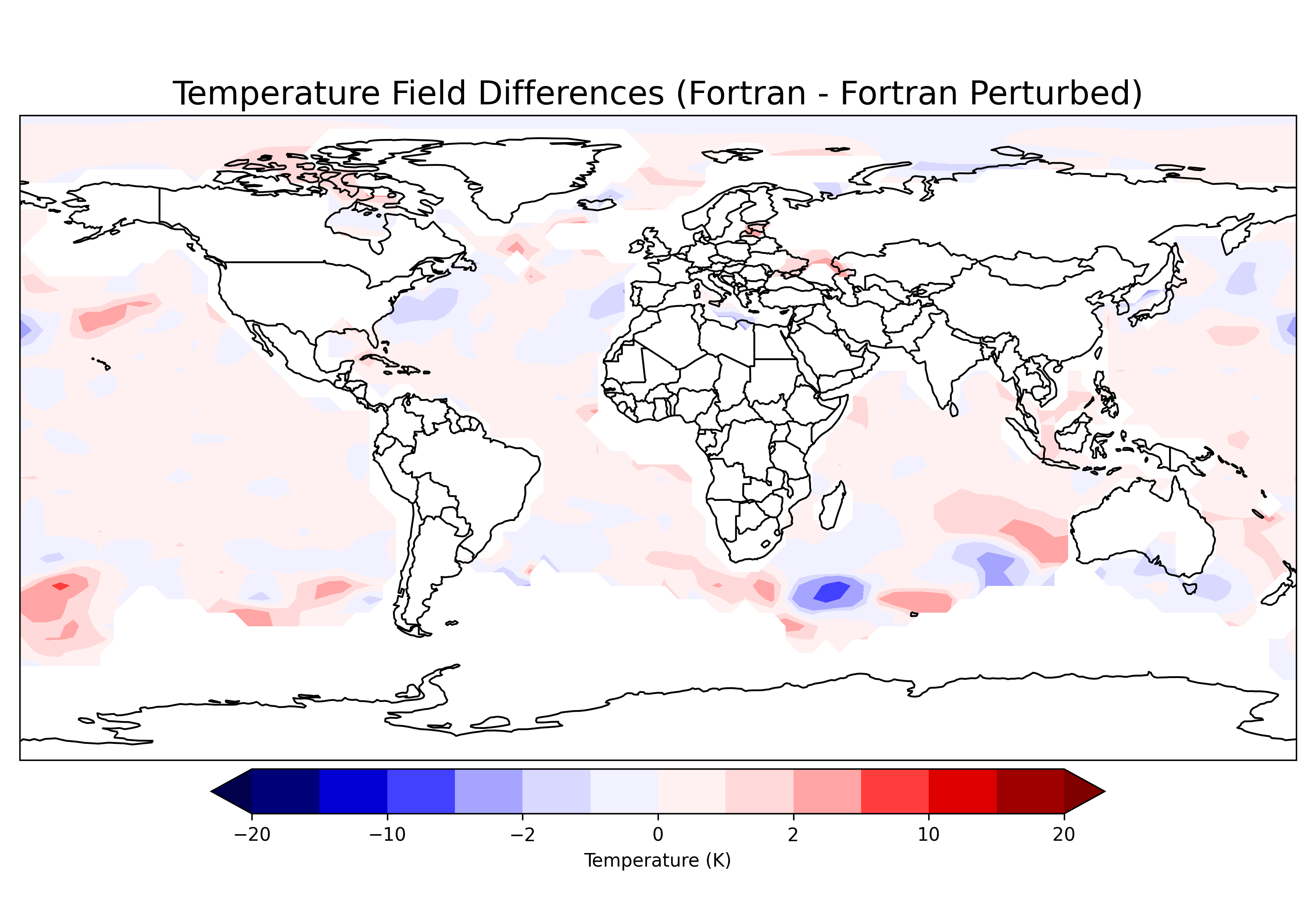

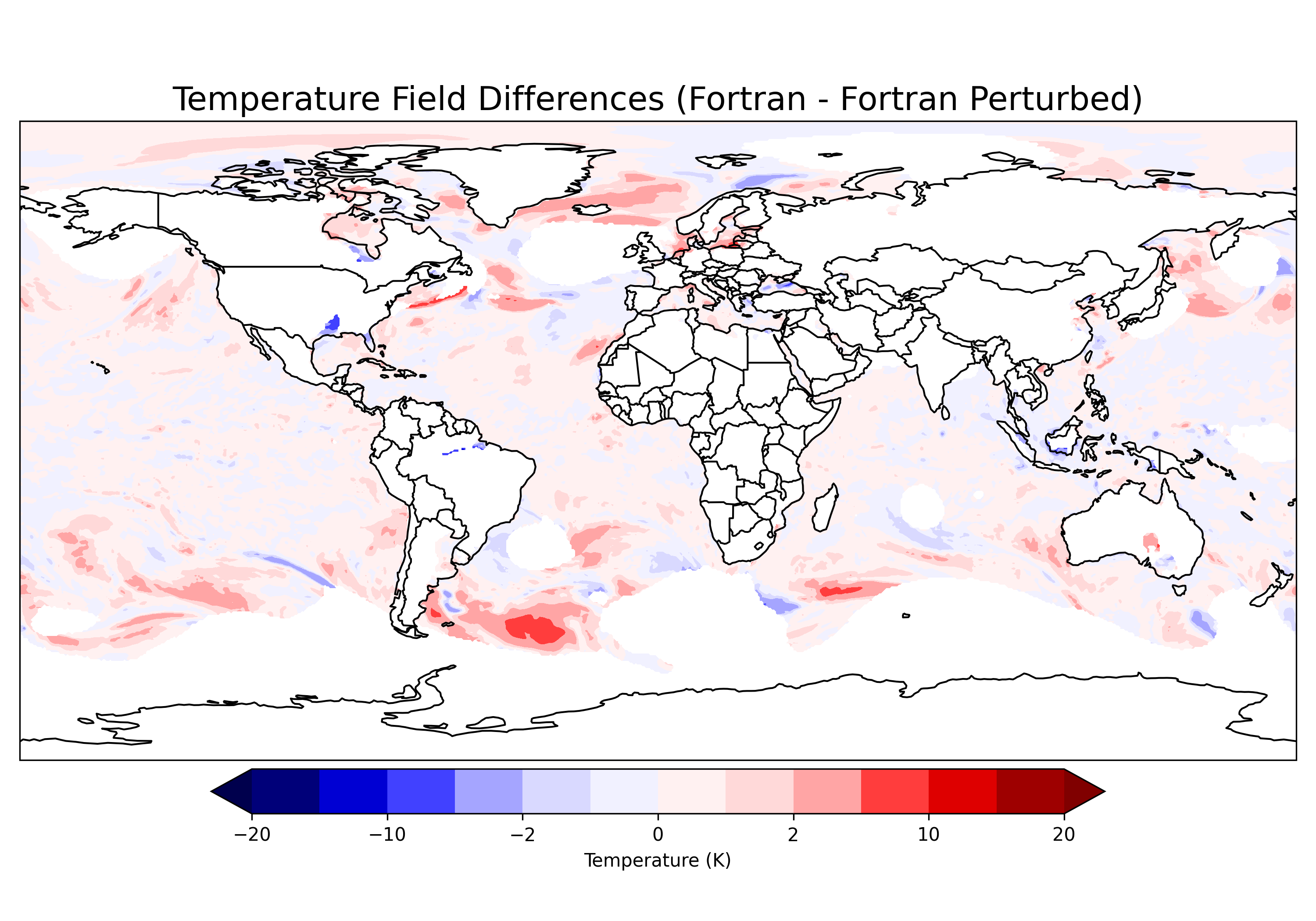

And the temperature differences between the reference Fortran and the perturbed Fortran runs:

It can be seen that by initializing the Fortran run with relatively small errors, those errors can become exacerbated over time and grow into much larger errors. Therefore, even though we have achieved very close numerical validation of the UW shallow convection scheme, the small errors that still exist between the Fortran and NDSL have the potential to grow into large errors throughout a longer simulation. Going forward, we plan to pay close attention to these errors and try to minimize them as best we can.
