SCM results

Last updated: April 8th, 2026

Early scientific validation results using the SCM.

UW Shallow Convection

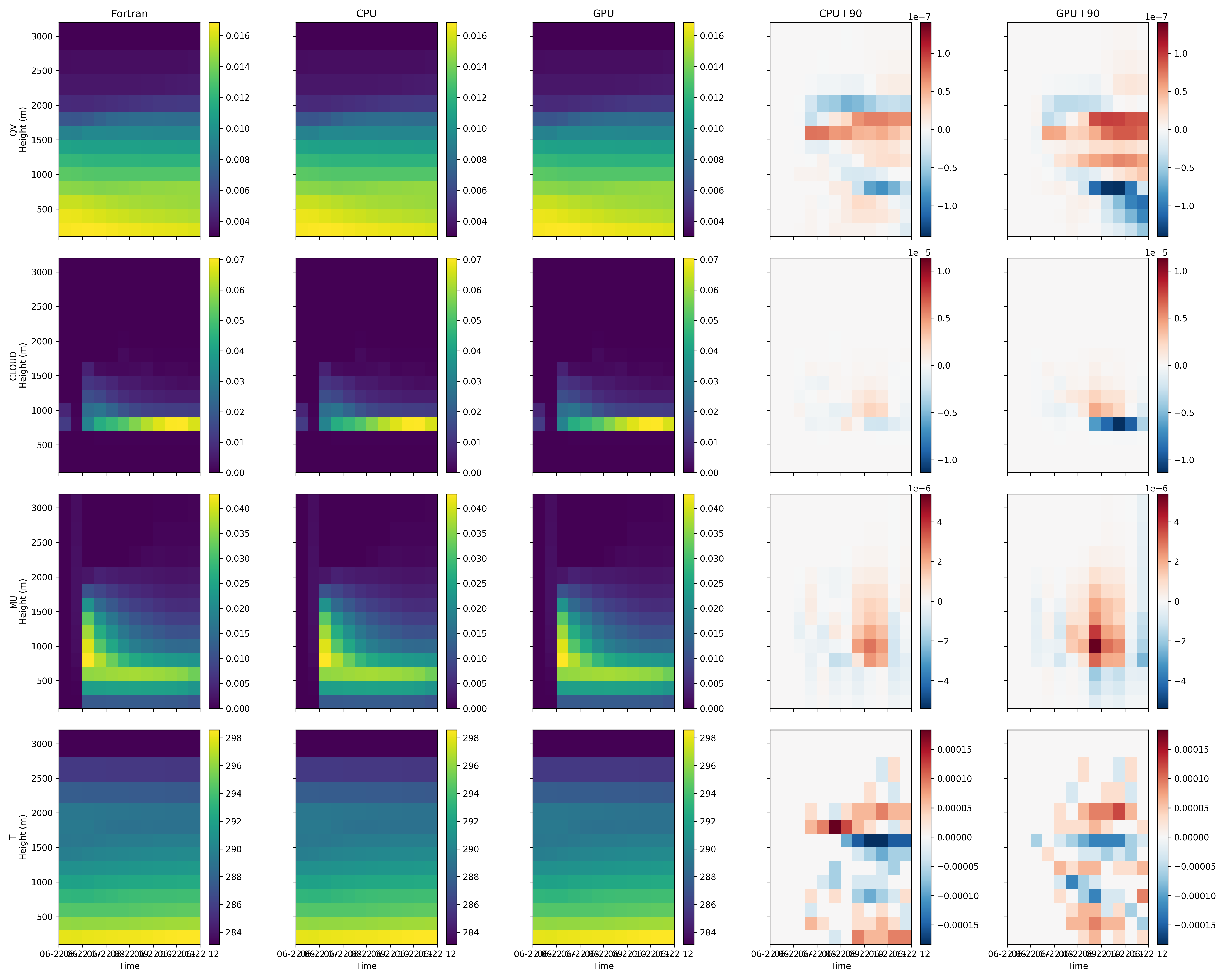

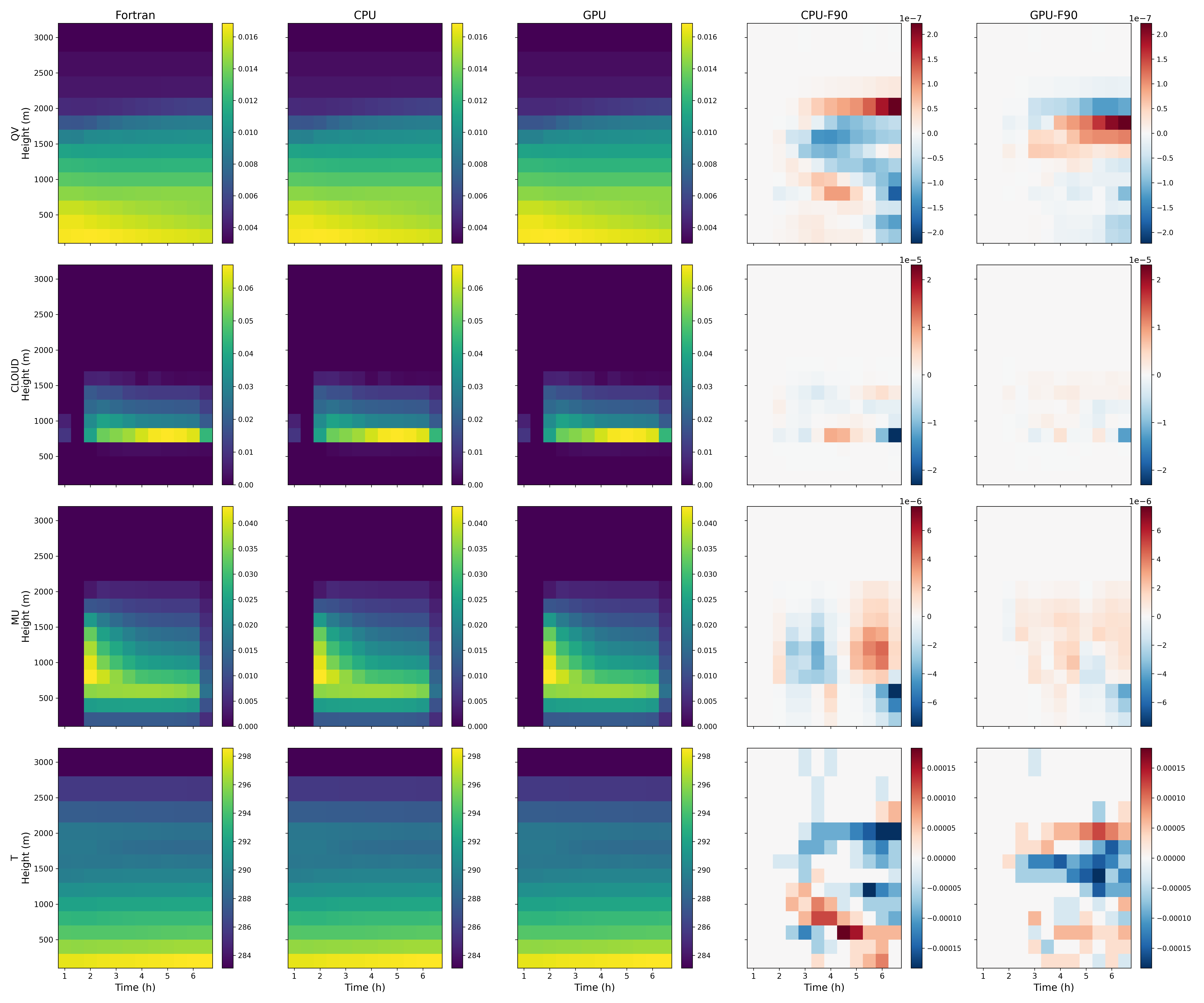

Results: `bomex` [6 hr, 72 levels]

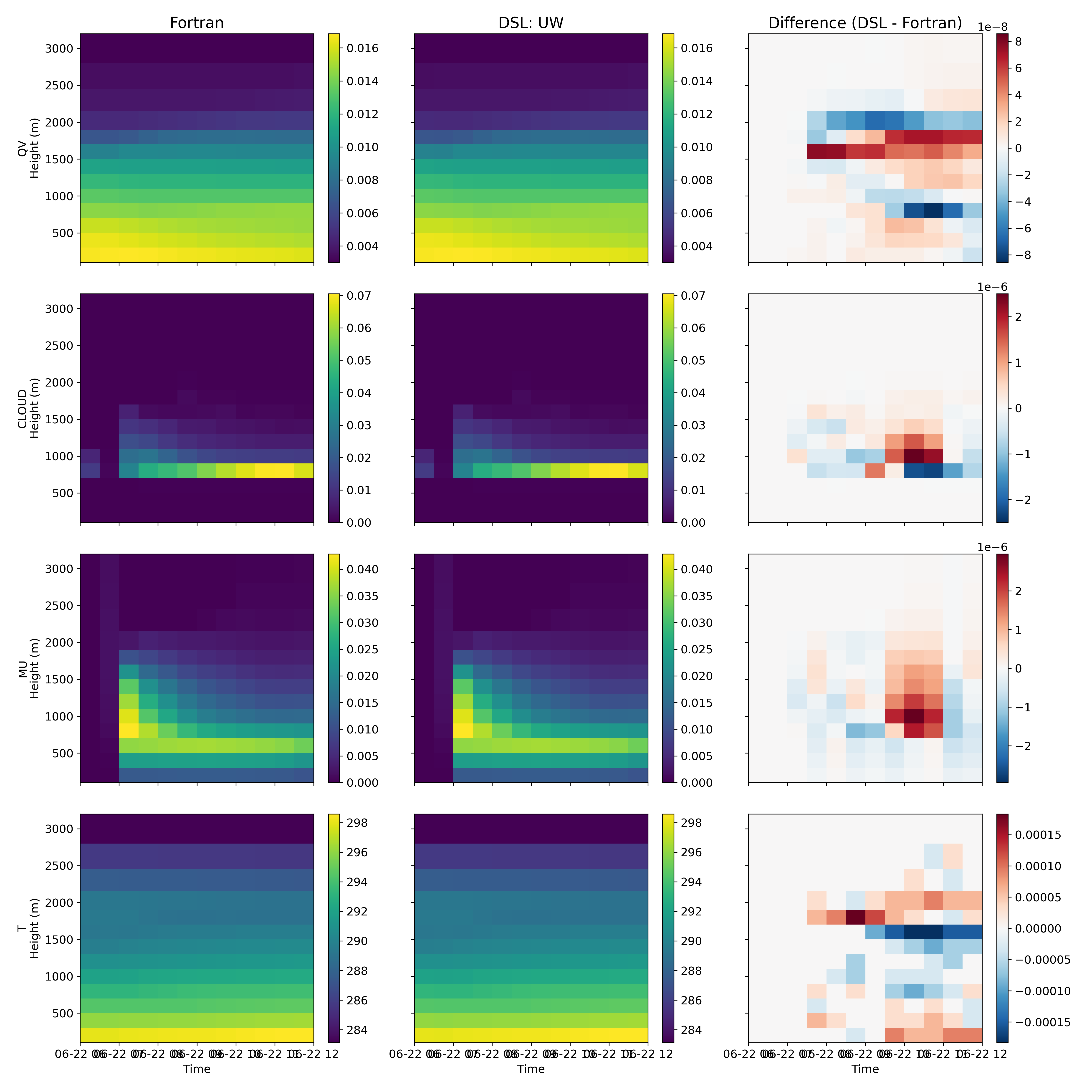

Hovmoller

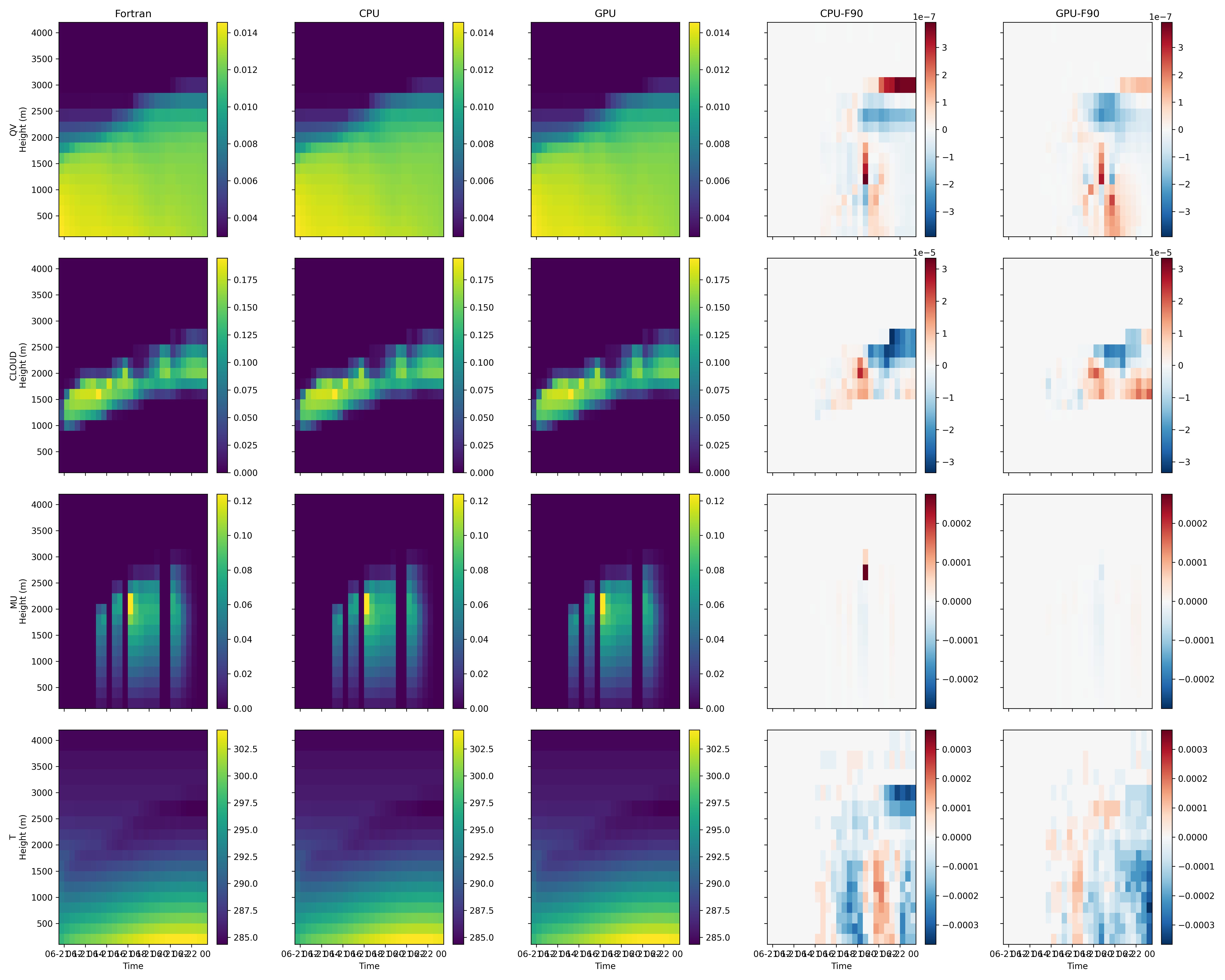

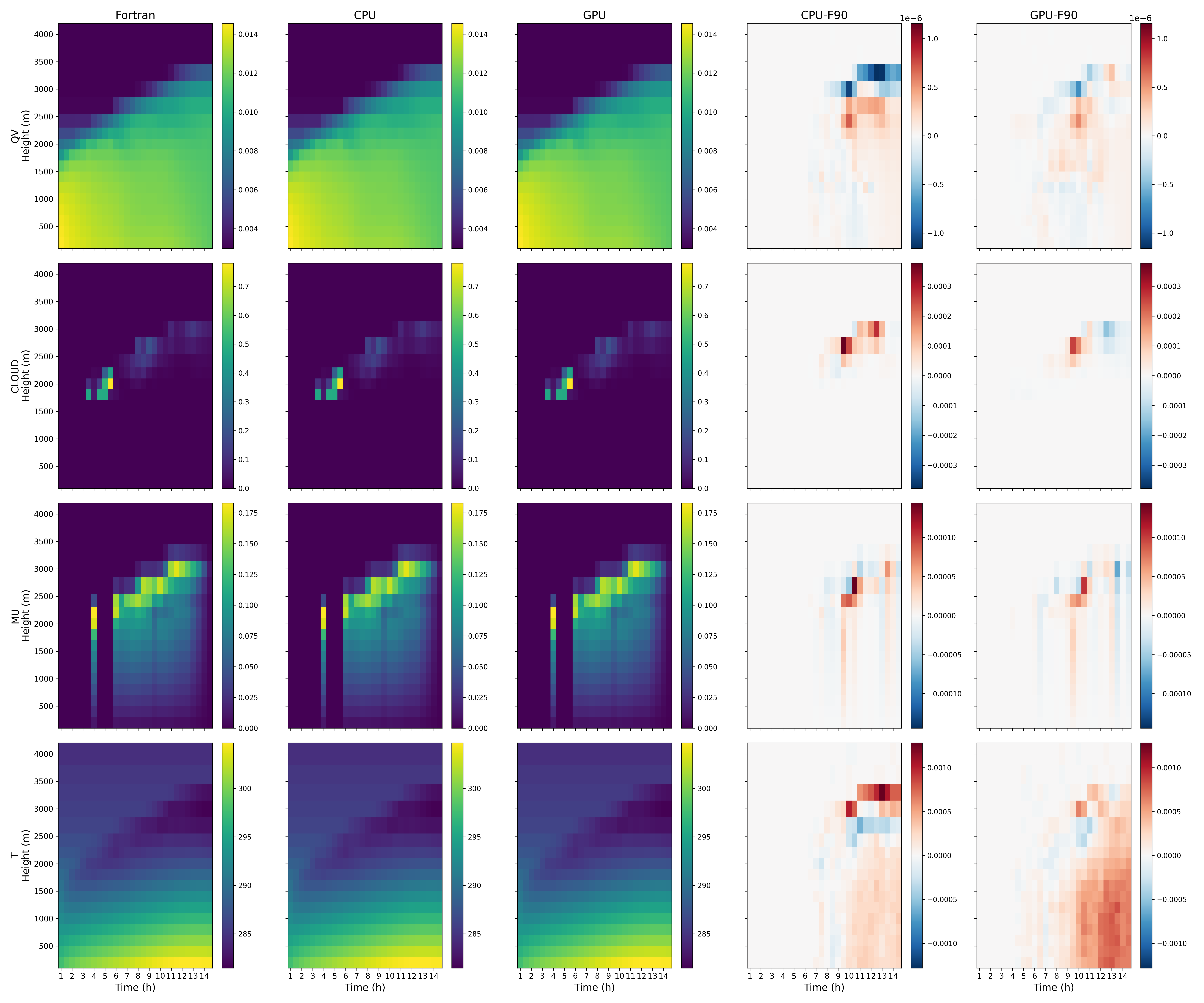

Results: `arm_97jun` [12 hr, 72 levels]

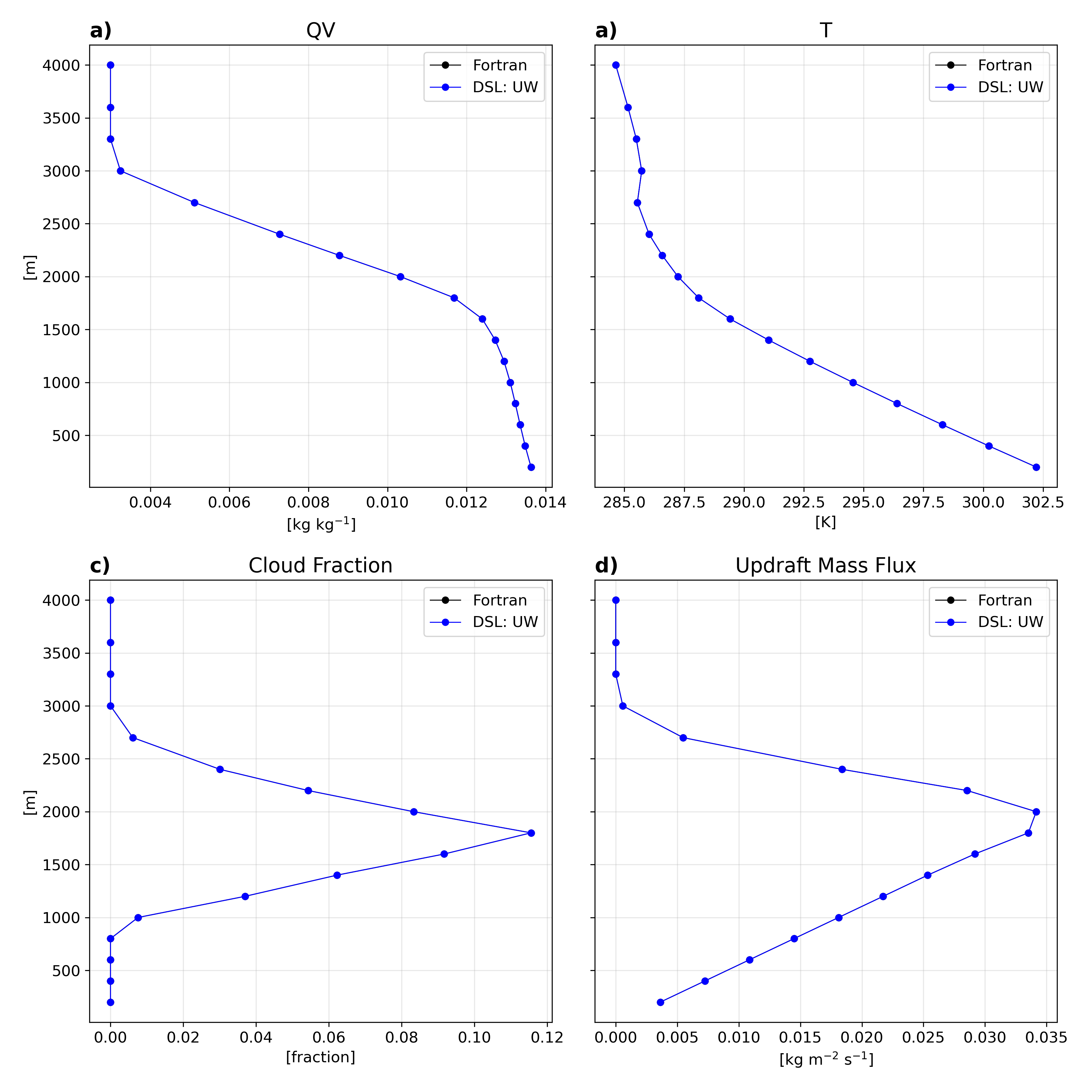

Profiles

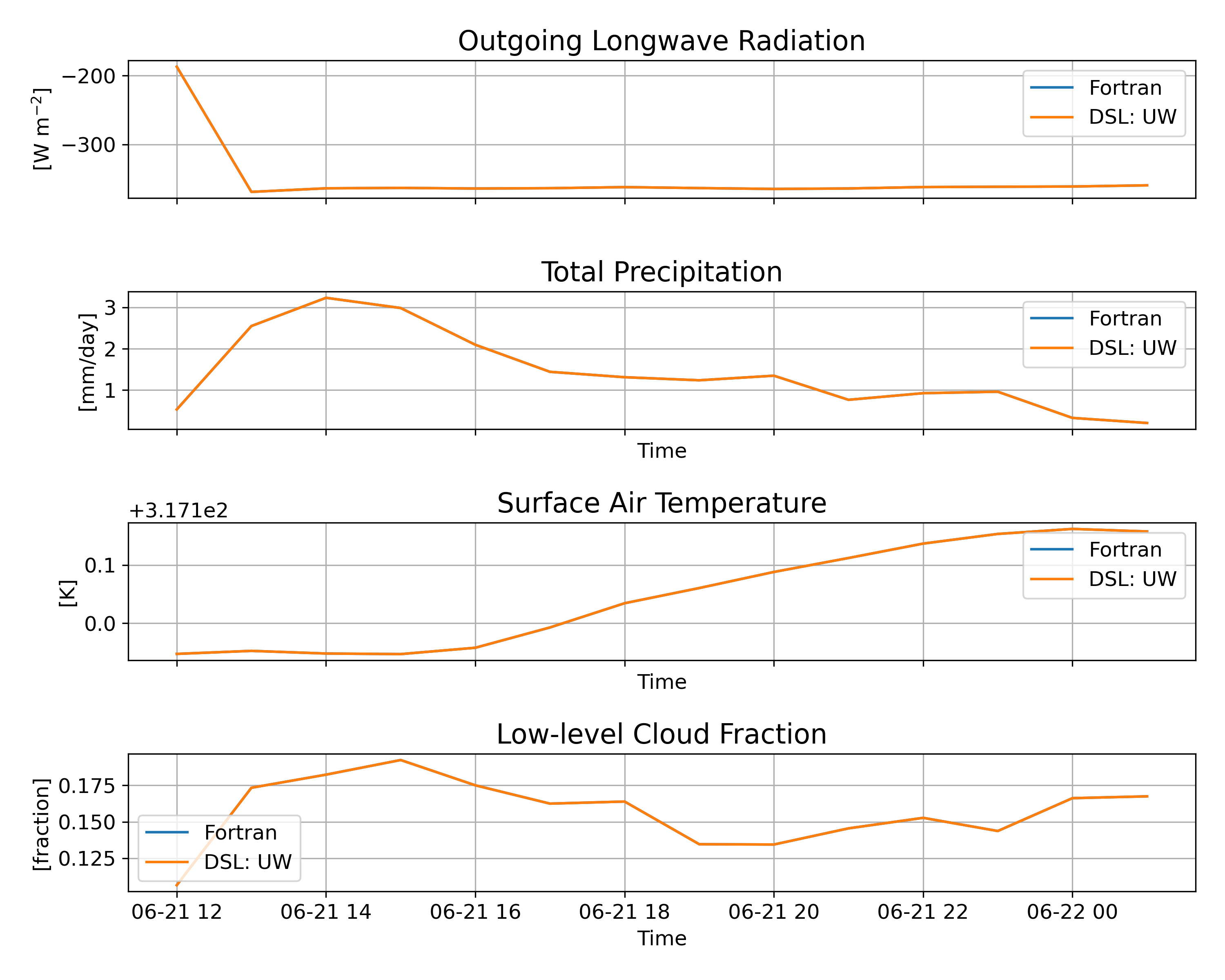

Timeseries

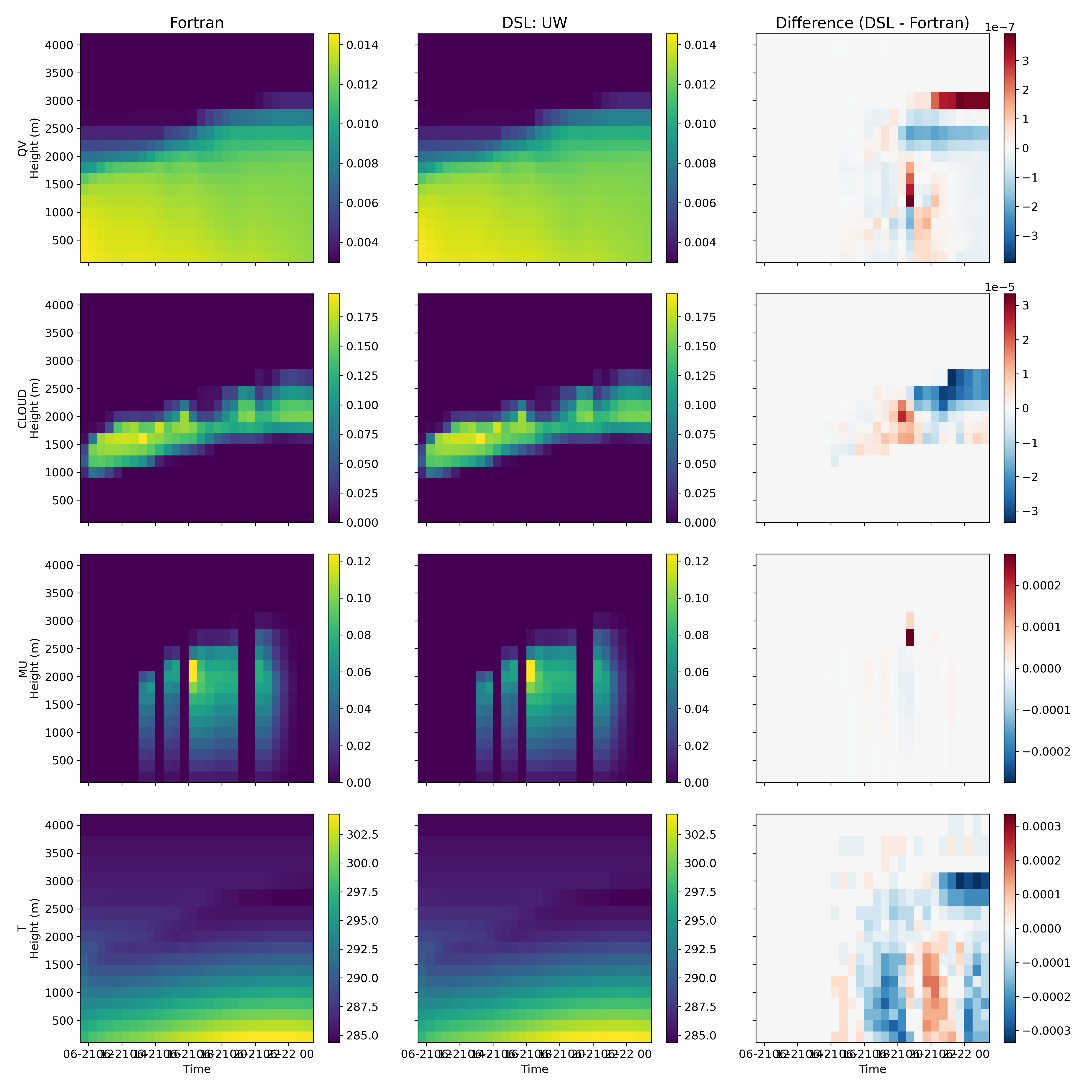

Hovmoller

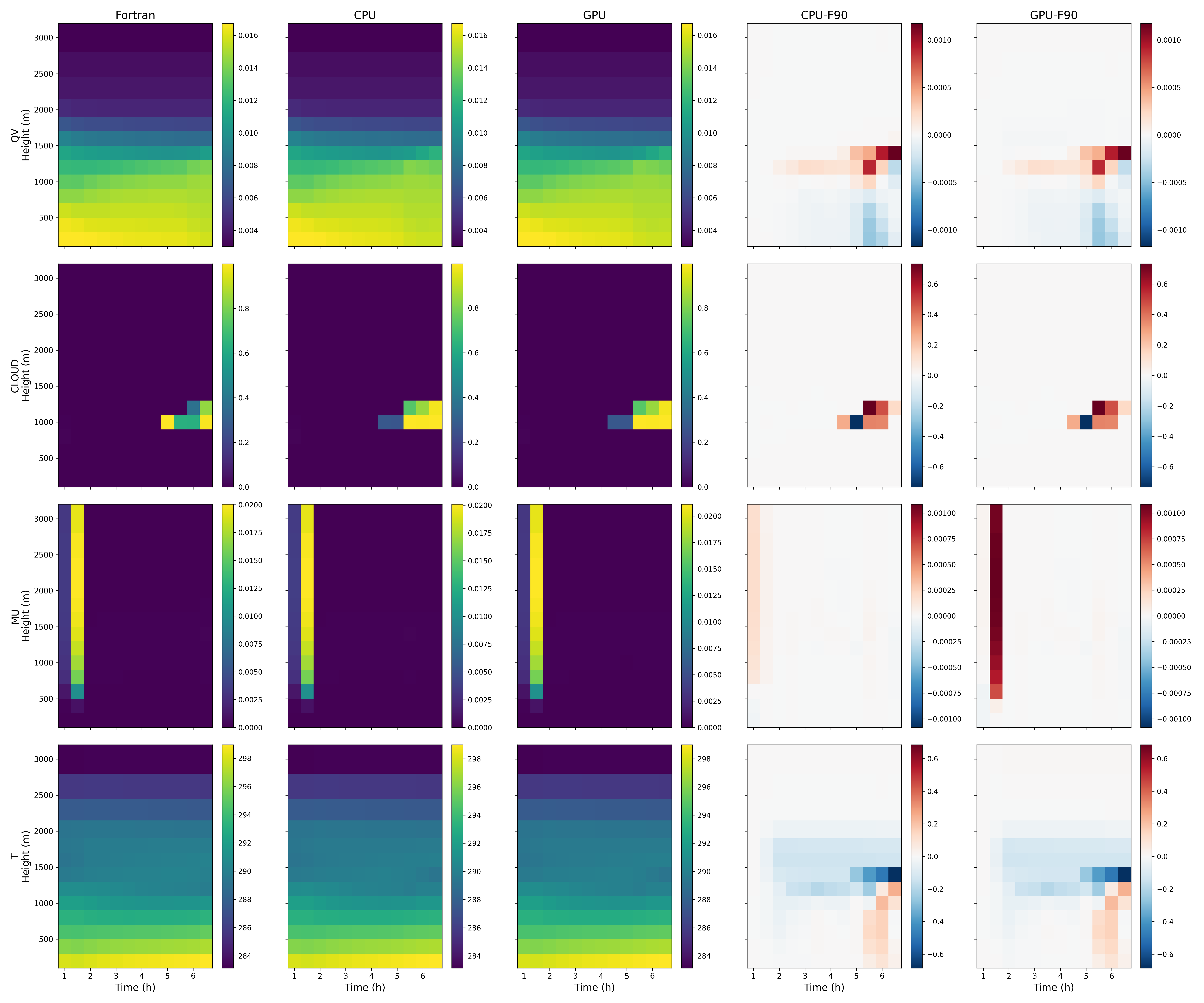

Results: `arm_97jun` [12 hr, 181 levels]

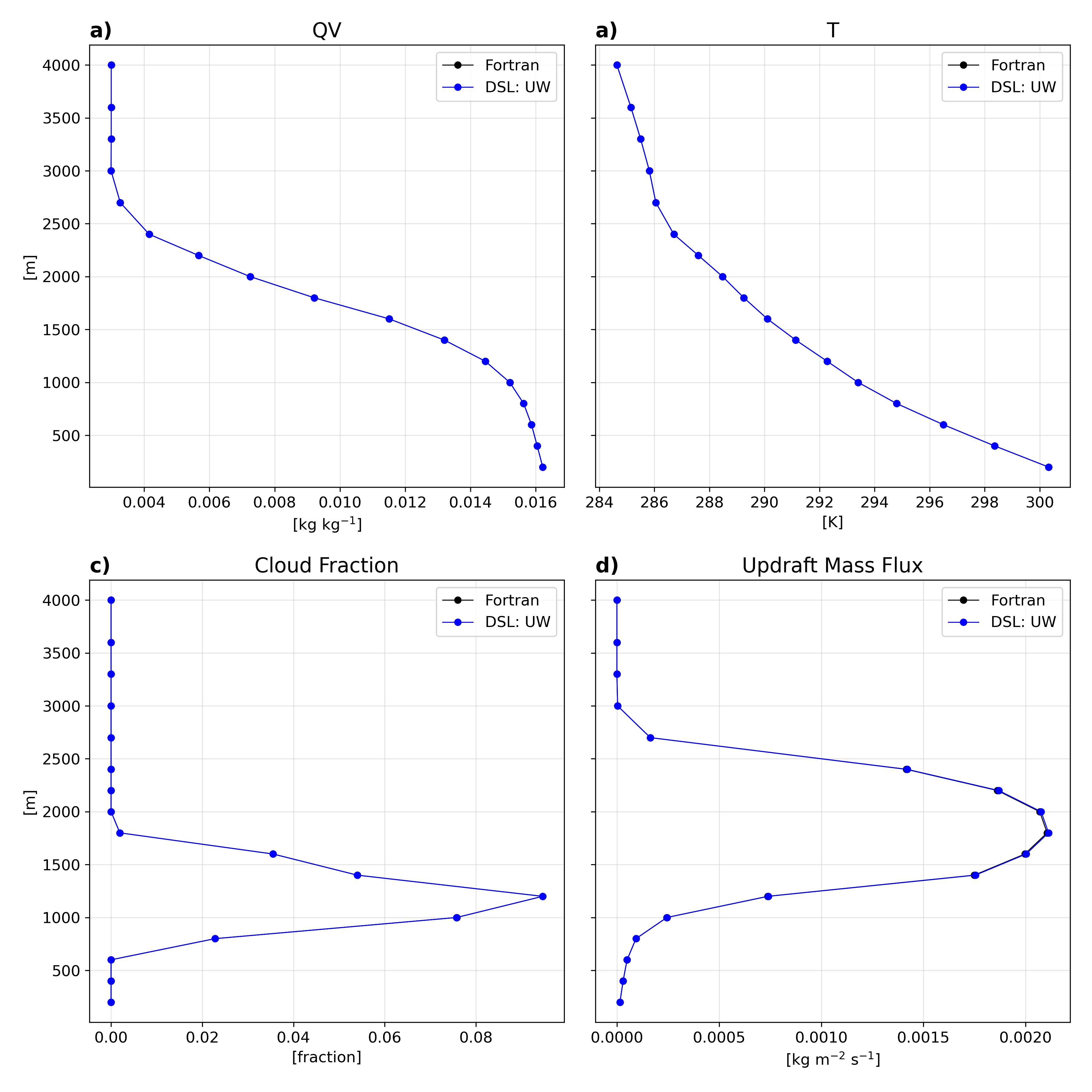

Profiles

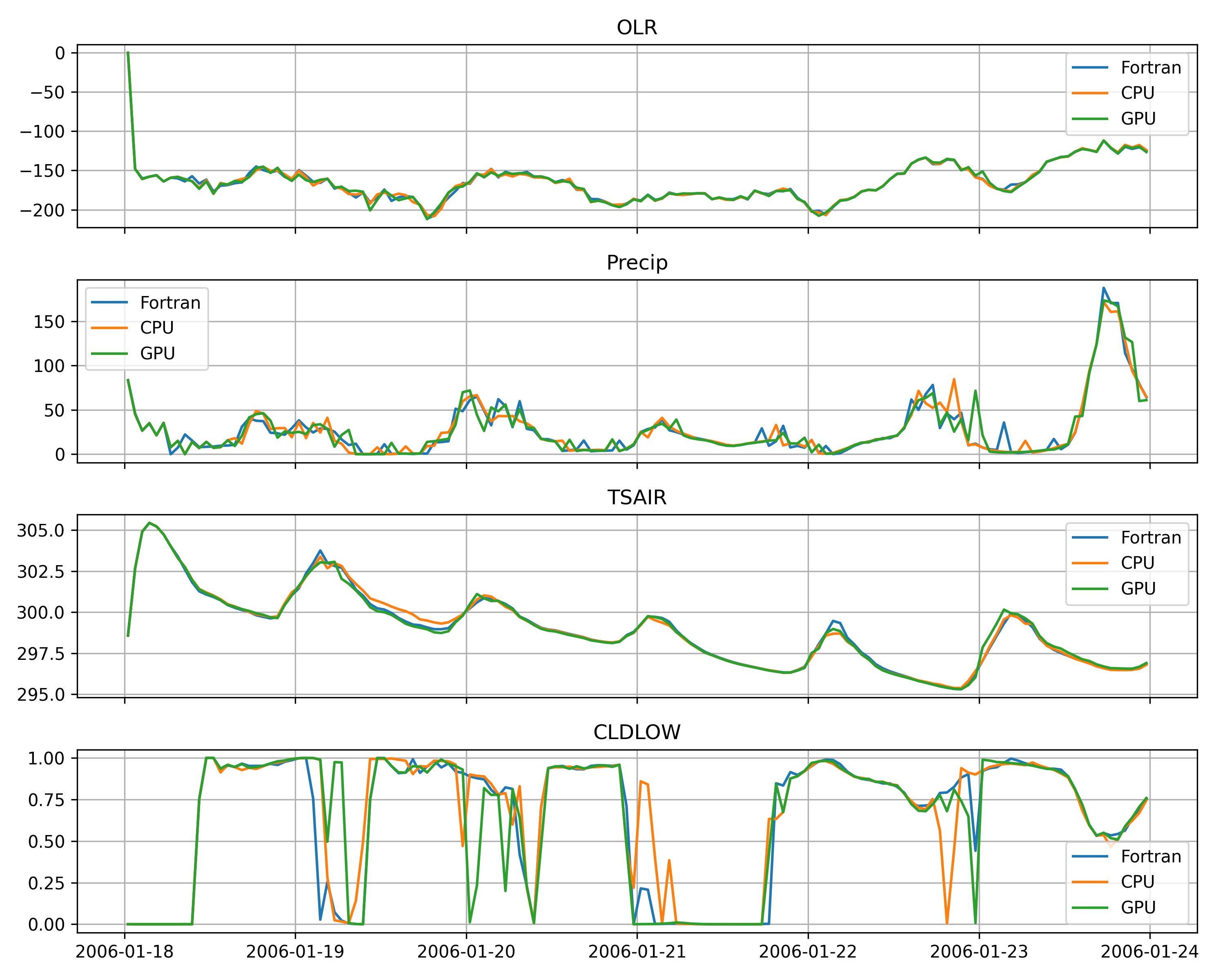

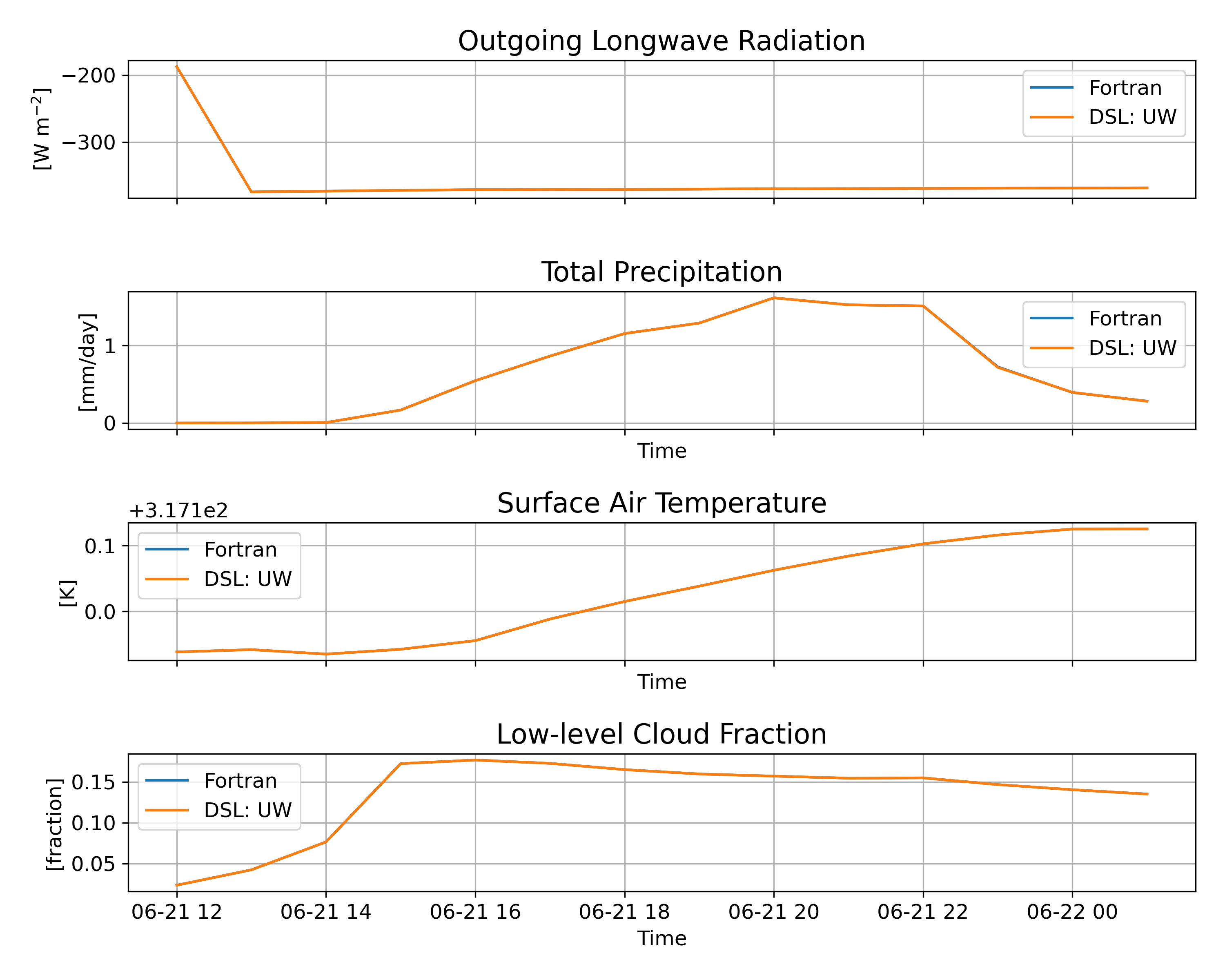

Timeseries

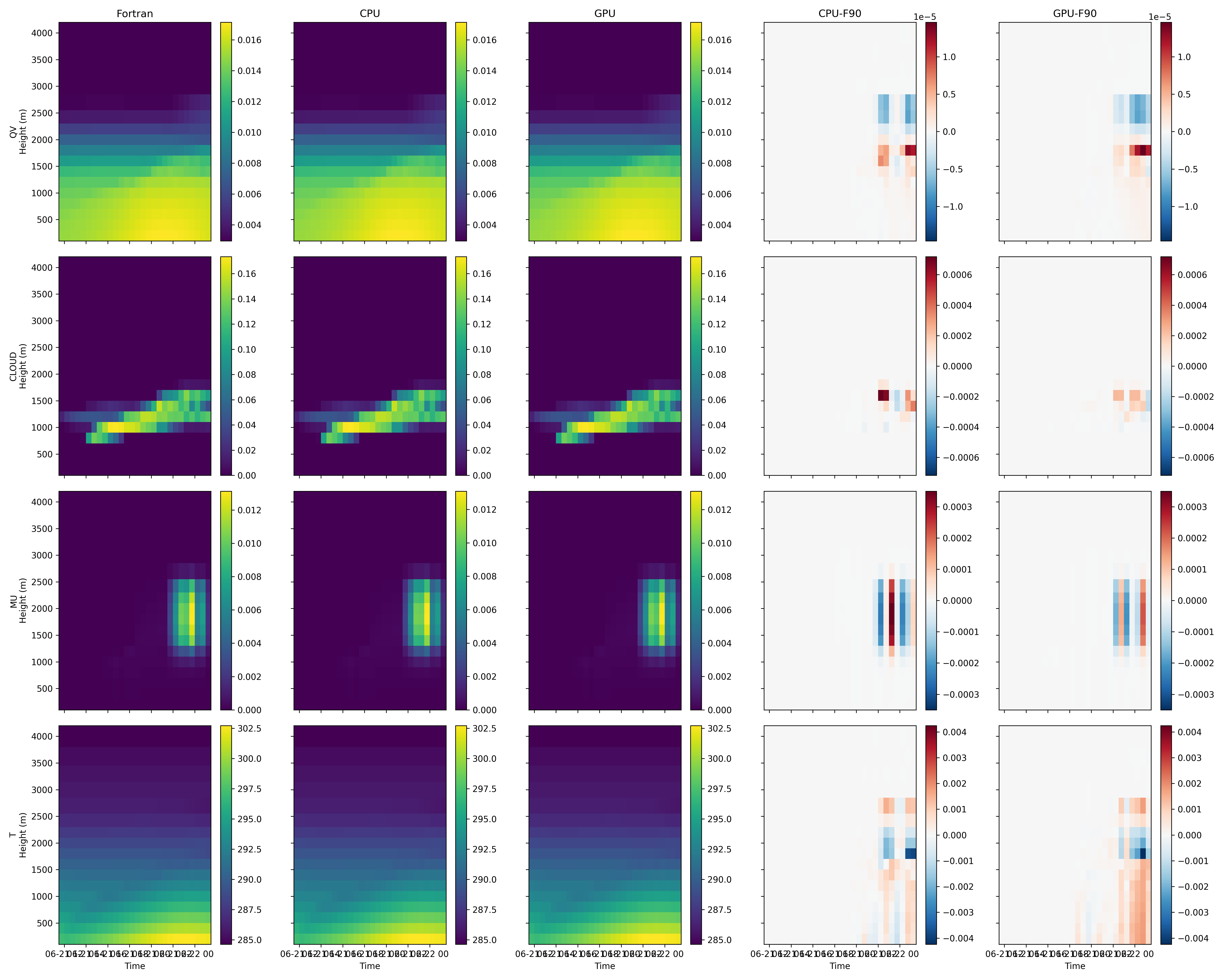

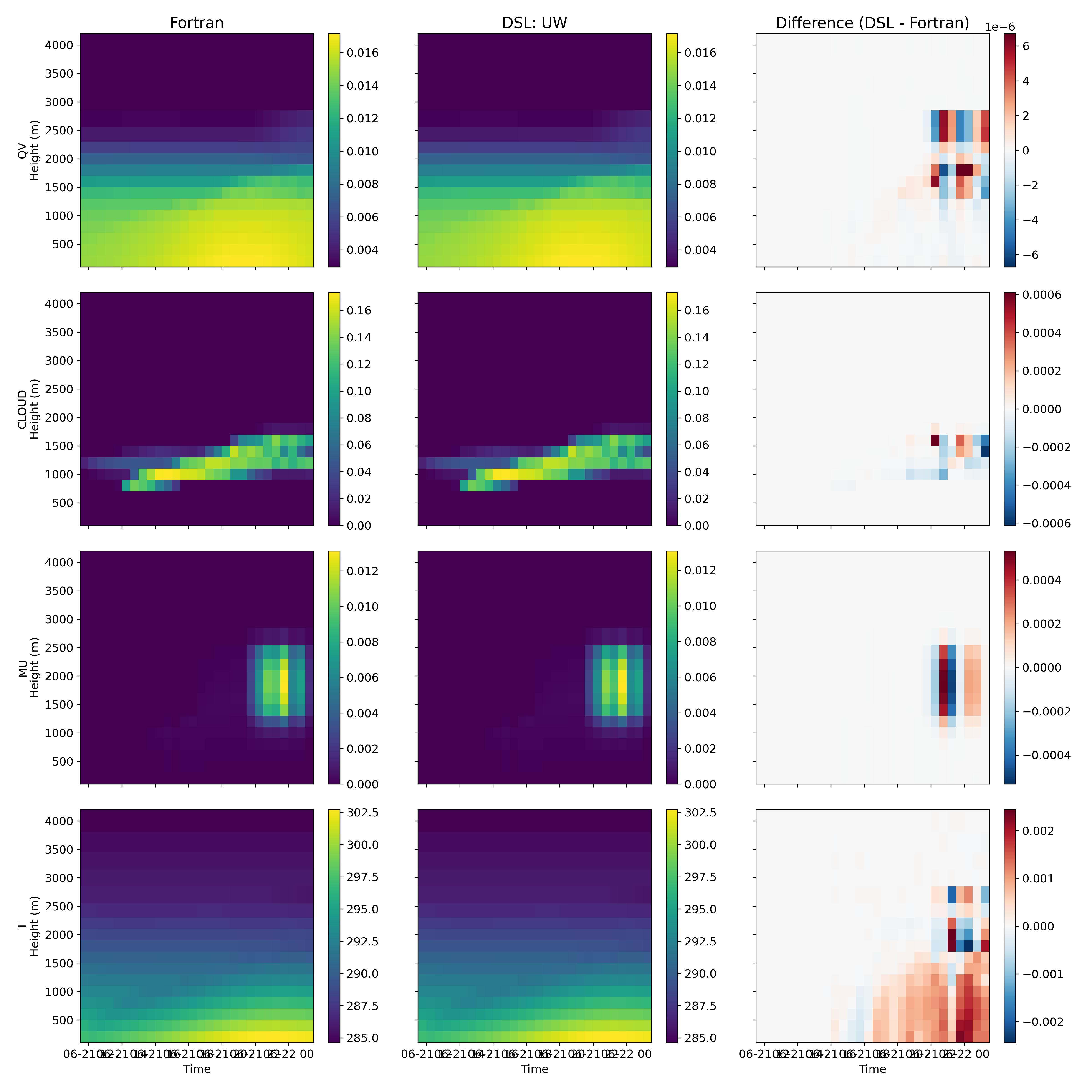

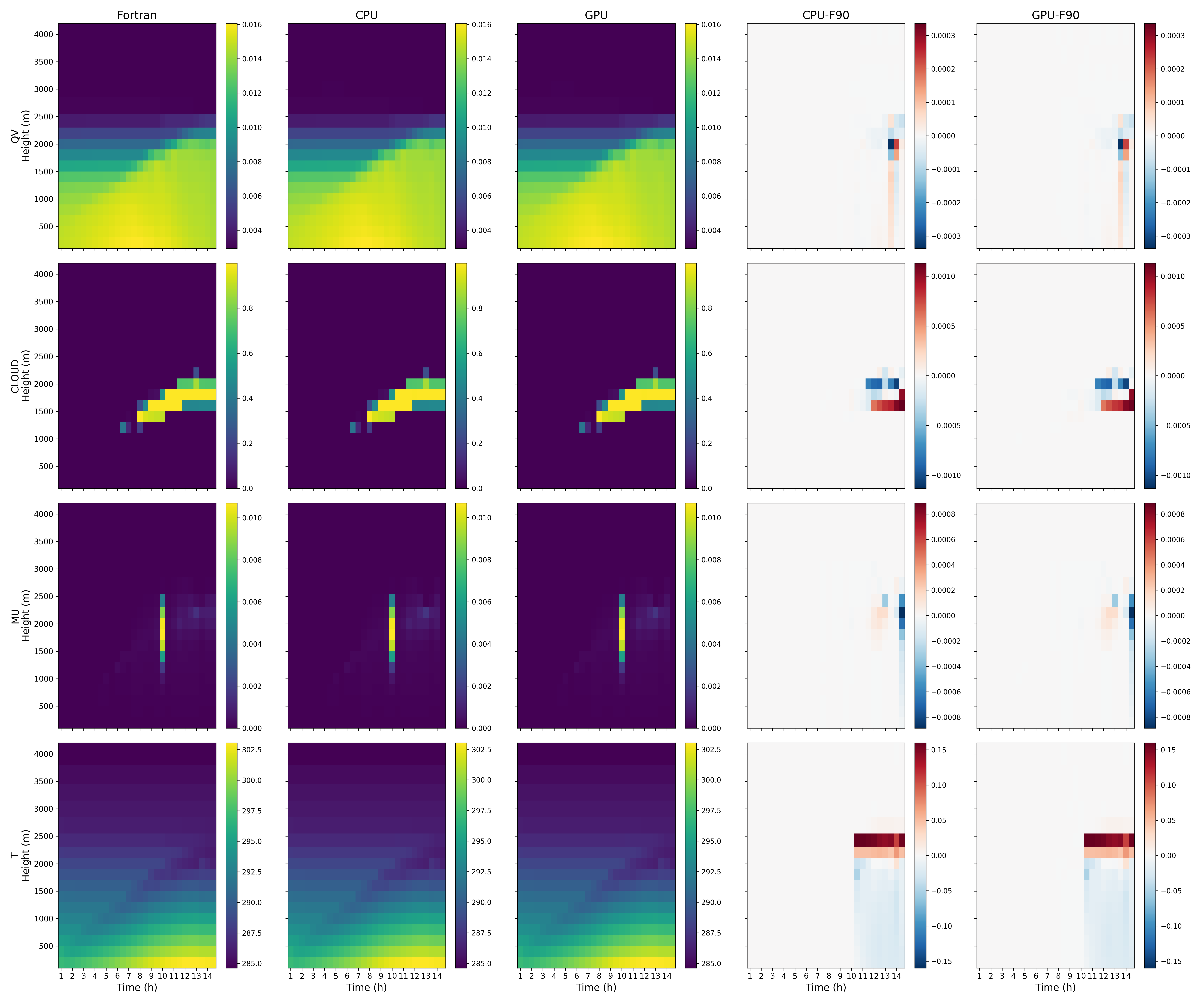

Hovmoller

GFDL1M Microphysics

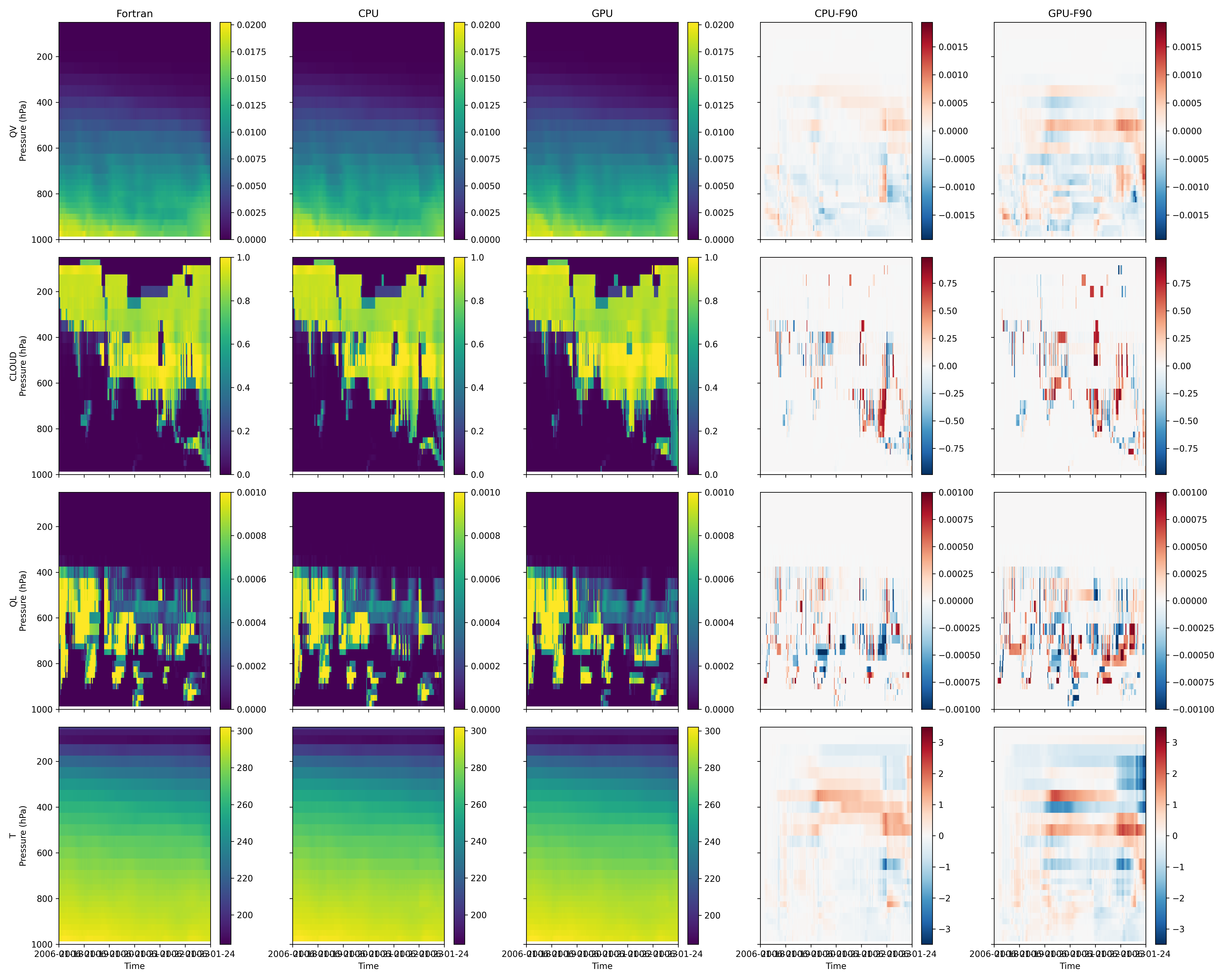

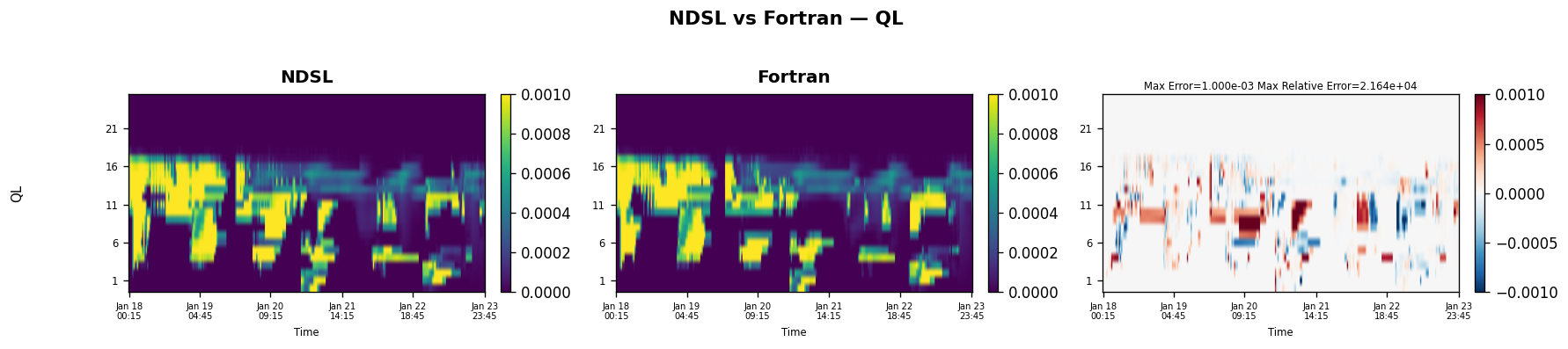

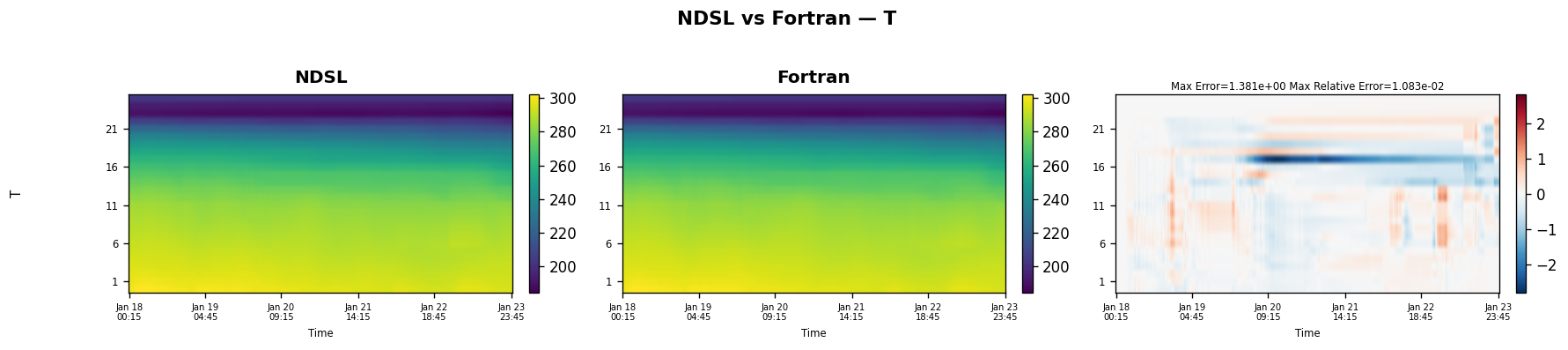

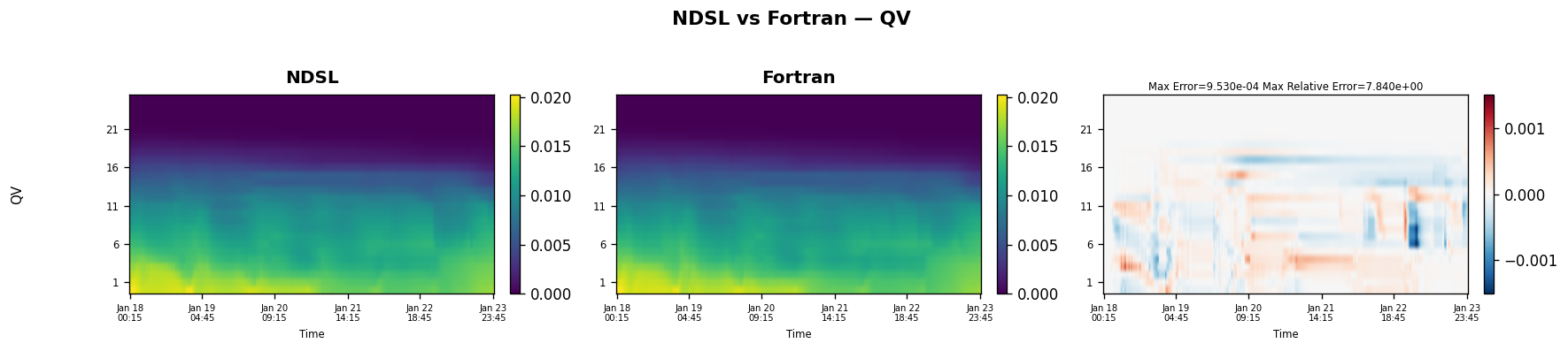

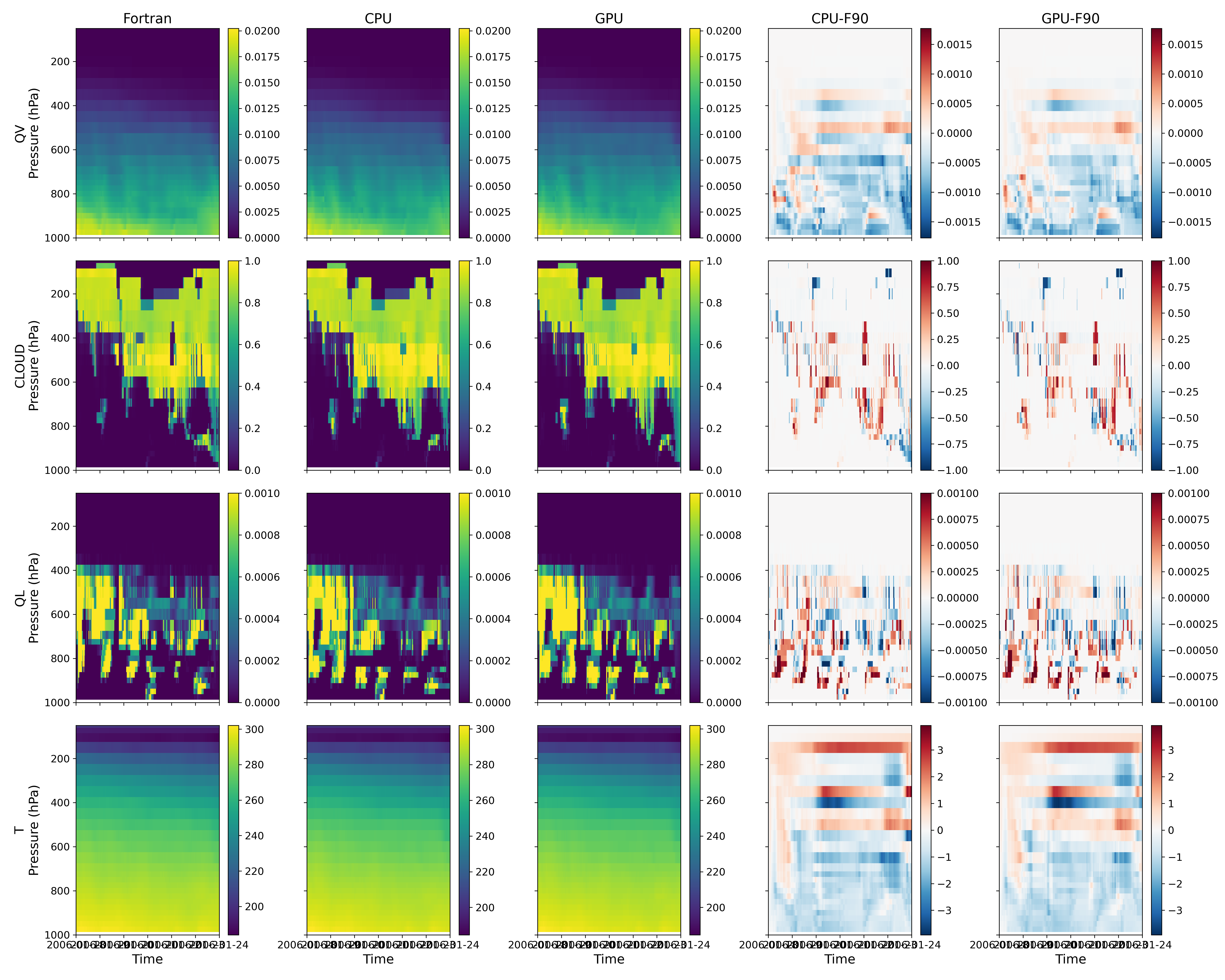

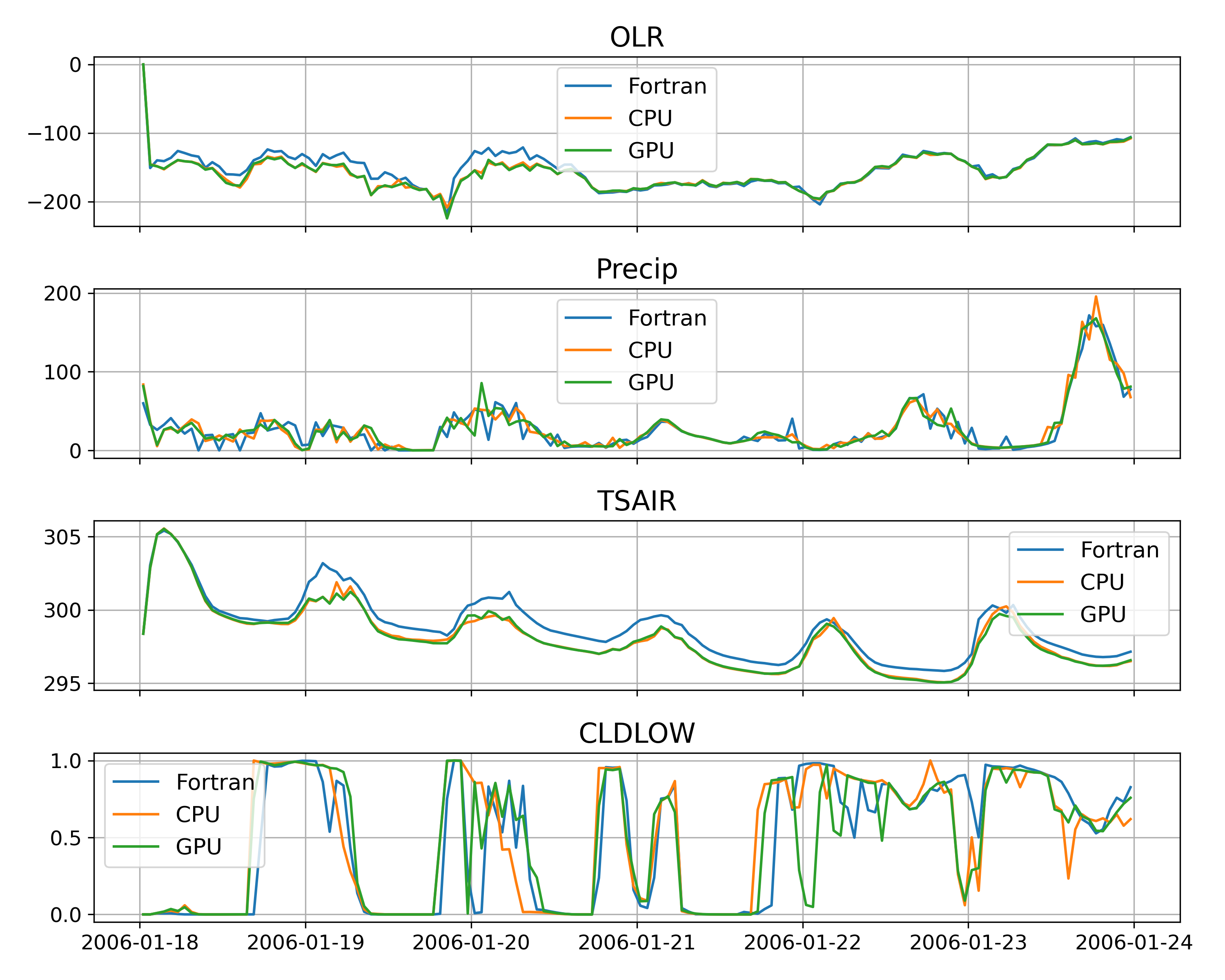

Results: `armtwp_ice` [6 days, 72 levels]

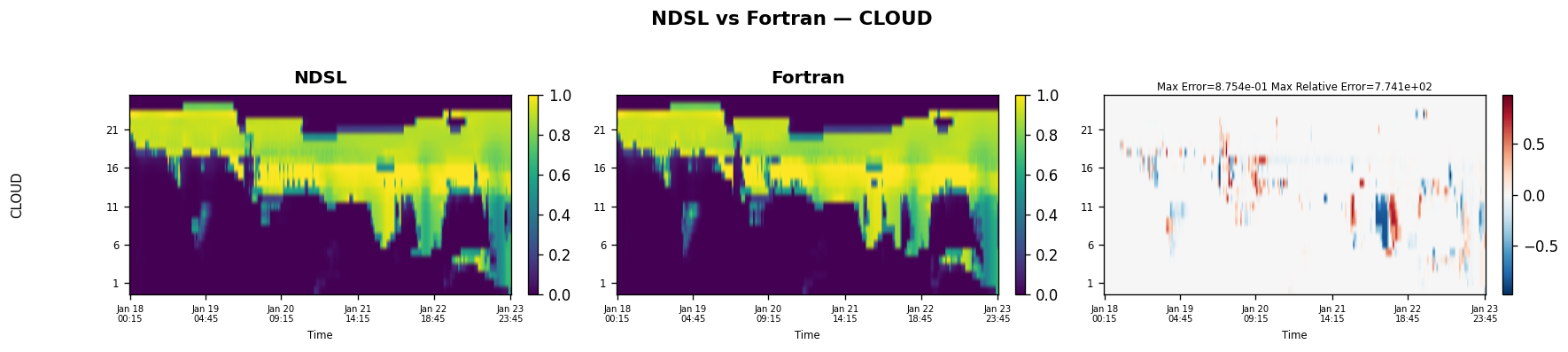

CLOUD

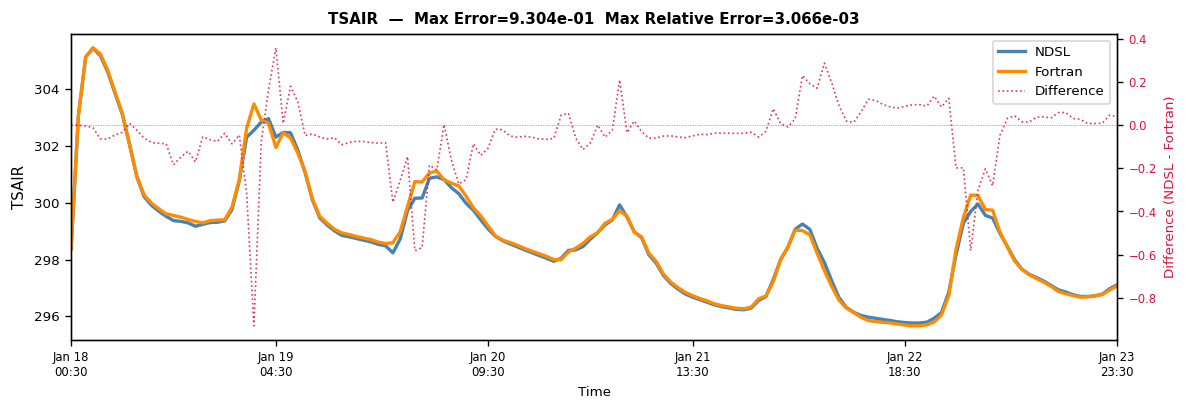

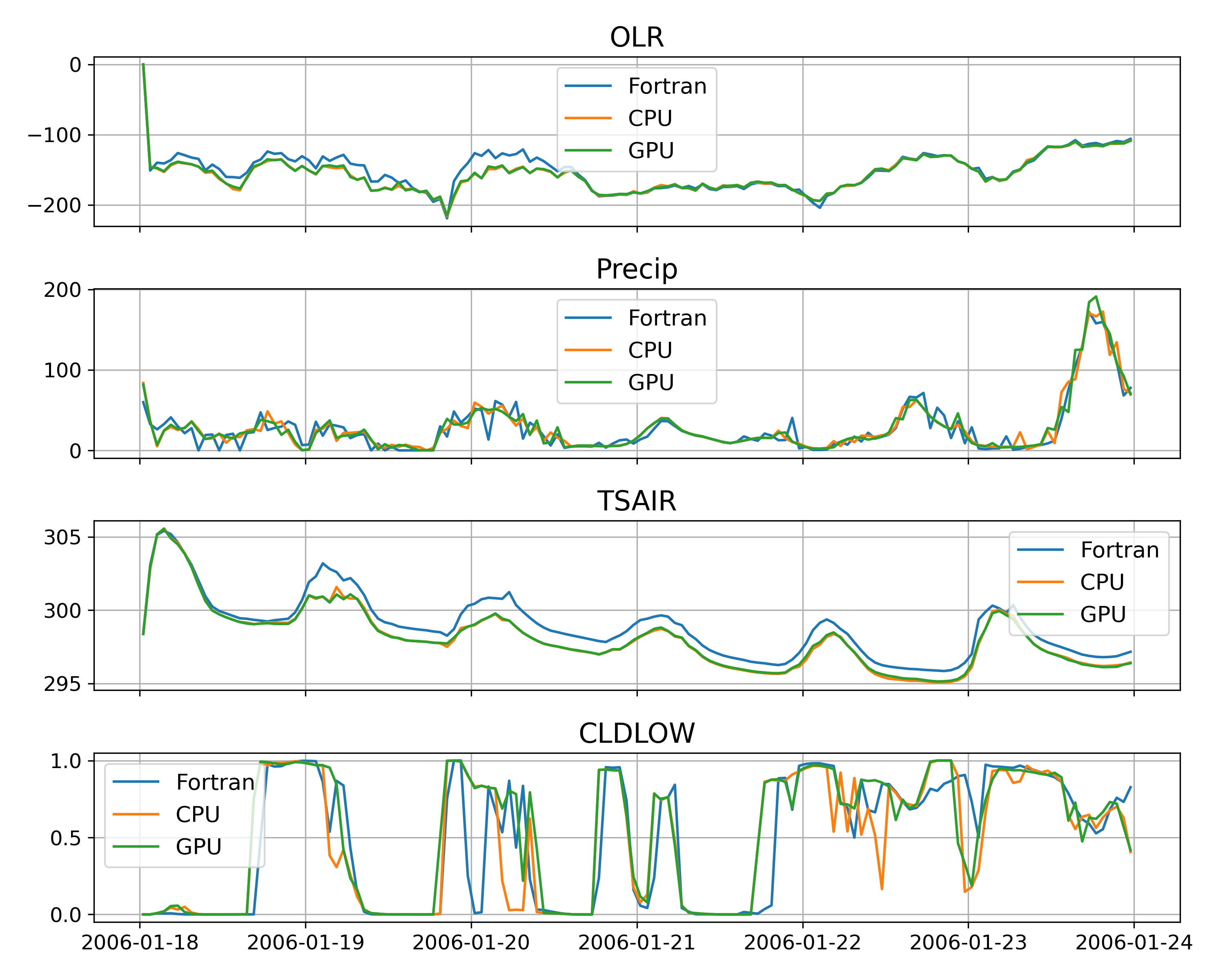

TSAIR
